LBP Board 2372

Temperature Grade

1300℃ (2372℉)

Chemistry

Silicon, calcium, magnesium (AES)

Overview Features Applications Specifications Resources Related Products CCEWOOL® LBP Board 2372 CCEWOOL® Low Biopersistent Fiber Board 2372 is the latest development in soluble fiber products, made from a blend of soluble fiber cotton, organic, and inorganic binders, forming a hard board. In use, Low Biopersistent Fiber Board maintains high compressive strength and low thermal conductivity, […]

Get a Quote

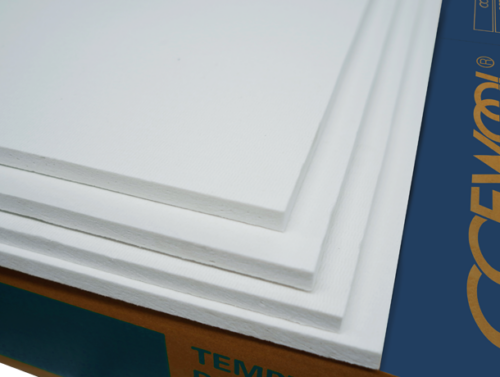

CCEWOOL® LBP Board 2372

CCEWOOL® Low Biopersistent Fiber Board 2372 is the latest development in soluble fiber products, made from a blend of soluble fiber cotton, organic, and inorganic binders, forming a hard board. In use, Low Biopersistent Fiber Board maintains high compressive strength and low thermal conductivity, with physical properties remaining stable. It can withstand temperatures up to 1300℃ (2372℉), providing stability to the entire refractory lining system.

CCEWOOL® Low Biopersistent Fiber Board 2372 exhibits excellent chemical stability and can resist attack from most acids and corrosive agents, except hydrofluoric acid, phosphoric acid, and concentrated alkalis.

Benefits

  • Newly Upgraded Eco-Friendly Soluble Fiber Board

    This latest soluble fiber product is crafted from high-performance soluble fiber wool combined with both organic and inorganic binders, creating a durable and robust board.

  • Eco-Friendly Biodegradable Fiber

    Our fibers are made from alkali-earth silicate (AES) components like SiO₂, MgO, and CaO, ensuring biodegradability for enhanced human health and safety.

  • Perfect Balance of High Compressive Strength and Low Thermal Conductivity

    During use, it maintains outstanding compressive strength and an exceptionally low thermal conductivity, ensuring stable physical performance. The maximum operating temperature reaches 1300℃ (2372℉).

  • Internationally Certified for Safe Use

    Certified by Germany's Fraunhofer Institute, it complies with Global Harmonized System (GHS) standards, eliminating the need for a carcinogenic warning label.

Features of Low Biopersistent Fiber Board 2372

  • High temperature stability

    The board maintains its structural integrity and performance at elevated temperatures, ensuring reliability in high-heat applications.

  • Low thermal conductivity

    CCEWOOL® Low Biopersistent Fiber Board 2372 exhibits minimal heat transfer capability, providing effective thermal insulation to reduce energy loss.

  • Resistance to thermal shock

    The board withstands sudden changes in temperature without cracking or deteriorating, ensuring durability in thermal cycling conditions.

  • Good handling strength

    CCEWOOL® Low Biopersistent Fiber Board 2372 has sufficient mechanical strength for easy handling and installation, maintaining integrity during transportation and installation processes.

  • Easy to cut with standard tools

    The board is straightforward to cut or shape using common tools, facilitating customization and ease of installation in various applications.

Application of Low Biopersistent Fiber Board 2372

Advanced Solutions for High-Temperature Applications

Hot gas duct linings;
Rigid high temperature gaskets and seals;
Heat shields;
Shapes for domestic appliances;
Molten metal transfer systems.

Specifications & Sizes

CCEWOOL® LBP Board 2372
Classification Temperature (℃ ) 1300℃(2372℉)
Color Light Bluish
Density (kg/m³) 300
Modules of Rupture (MPa) ≥0.25
Compressive Strength (MPa, 10% relative deformation) 0.15
Loss of Ignition (%) ≤7
Permanent Linear Shrinkage (%) 1260℃ x 24h ≤2.0
Thermal Conductivity (W/m·K)
200℃ 0.05
400℃ 0.07
600℃ 0.1
800℃ 0.11
1000℃ 0.14

Custom size are available.Contact Us
