RCF Board MD 2300

Temperature Grade

1260℃ (2300℉)

Chemistry

Alumina, Silica

Designed to meet the stringent demands of modern industry, CCEWOOL® Ceramic Fiber Board MD 2300 exhibits high strength and rigidity while providing excellent insulation performance and high-temperature stability.

Get a Quote

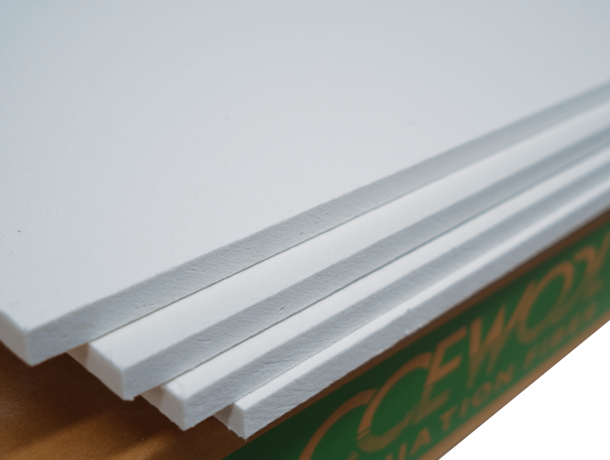

CCEWOOL® RCF Board MD 2300

CCEWOOL® Ceramic Fiber Board MD 2300 is produced from high-purity alumina-silicate fibers with a certain proportion of inorganic or organic binders added. It is manufactured through processes such as pressing, curing, shaping, longitudinal and transverse cutting, resulting in a rigid board with outstanding performance.

CCEWOOL® Ceramic Fiber Board MD 2300 is designed to meet the demanding requirements of modern industry, offering high strength and rigidity while exhibiting excellent insulation properties and high-temperature stability. The surface of CCEWOOL® Ceramic Fiber Board MD is flat, and it is available in various standard thicknesses for selection.

Benefits

  • Ultra-Low Shot Content

    Shot content is a crucial factor in determining the thermal conductivity of fibers. Using a unique shot removal process, our fibers achieve ultra-low shot content, demonstrating excellent thermal performance with low thermal conductivity and superior insulation properties in continuous high-temperature environments.

  • Minimal Shrinkage Rate

    Strict control of harmful impurities is essential for reducing thermal shrinkage and enhancing heat resistance. Through rigorous raw material management, we reduce impurity content to below 1%, ensuring low thermal shrinkage and high heat resistance in our fiber boards.

  • Strongest compressive strength

    Compressive strength refers to the fiber board's ability to resist breaking under pressure. Using a fully automatic drying system, the drying process is faster and more thorough, achieving deep drying in 2 hours with uniform results. This ensures the product has superior compressive strength.

  • Lowest Thermal Conductivity

    Through strict quality control and high-standard production processes, CCEWOOL® minimizes shot content and meticulously controls bulk density, achieving the lowest thermal conductivity. This provides customers with exceptional insulation performance and more efficient energy-saving solutions.

Features of Ceramic Fiber Board MD 2300

  • Low heat capacity, low thermal conductivity

    This board exhibits very low capacity to retain heat and minimal thermal conductivity, ensuring efficient thermal insulation to conserve energy and maintain temperature stability.

  • Non-brittle material, good elasticity

    This board is crafted from a non-brittle material with excellent elasticity, ensuring durability under mechanical stress without risk of fracturing or breaking, which is crucial for long-term performance in industrial environments.

  • High compressive strength

    It exhibits high compressive strength, allowing it to withstand significant pressure without deforming or compromising its structural integrity, making it suitable for applications requiring robust support and load-bearing capabilities.

  • Excellent wind-erosion resistance, long service life

    It offers excellent resistance to wind erosion and other environmental factors, contributing to an extended service life and maintaining performance integrity in harsh outdoor or exposed conditions.

  • Excellent thermal stability and thermal shock resistance

    It exhibits exceptional thermal stability and resistance to thermal shock, maintaining structural integrity and performance reliability even in environments with fluctuating temperatures, ensuring consistent insulation effectiveness.

  • Continuous production, even fiber distribution and stable performance

    Produced using a continuous manufacturing process, this board guarantees uniform distribution of fibers and stable performance, ensuring reliable insulation properties and ease of installation across various applications.

Application of Ceramic Fiber Board MD 2300

Comprehensive Solutions for Industrial Refractory and Insulation Applications

High temperature kiln and furnace linings;
Rigid high temperature gaskets and seals;
Heat shields;
Gas boiler combustion chamber linings;
Furnace hot face lining in ceramic kiln, box furnace & petrochemical furnace;
Use in industrial heat processing equipment;
High-temperature baffles & muffles;
Flue & chimney linings in furnaces & kilns;
Industrial heat shields & thermal barriers.

Specifications & Sizes

CCEWOOL® RCF Board MD 2300

Classification Temperature 1260℃(2300℉)
Operation Temperature 1050℃(1922℉)
Color white
Loss of lgnition (%) ≤6
Permanent Linear Shrinkage (%) 1050℃x24h≤3.0
Modules of Rupture (MPa) ≥0.3
Compressive Strength (MPa,10% relative deformation)
        300kg/m3 ≥0.25
        360kg/m3 ≥0.3
Thermal Conductivity (w/m.k)
               400℃ 0.08
               600℃ 0.11
               800℃ 0.14
              1000℃ 0.19
Chemical Composition (%)
Al2O3 ≥44
SiO2 ≥52
ZrO2 -
Package Carton box or pallet

CCEWOOL® RCF Board MD 2300

Thickness (mm) 20.25.50.80.100
Size (mm) 1200×1000 or customized size

CCEWOOL® RCF Board MD 2300

Thickness (in) 4/5”,1”,2”,3”,4”
Size (in) 47”×40” or customized size

Custom size are available.Contact Us
