Water Repellent RCF Blanket

Temperature Grade

1100°C (2012°F), 1260°C (2300°F)

Chemistry

Alumina, Silica

CCEWOOL® Water Repellent Ceramic Fiber Blanket undergoes an overall hydrophobic treatment to enhance water resistance, effectively preventing reduced thermal conductivity and insulation corrosion caused by moisture absorption, thereby maintaining its insulation effect.

Get a Quote

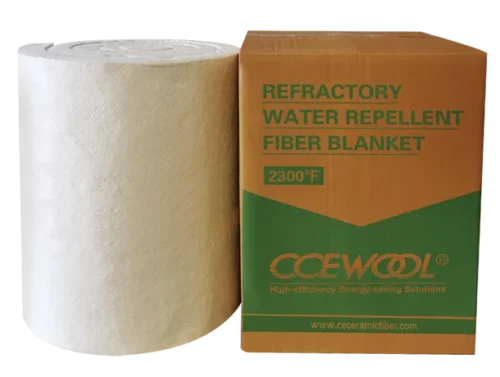

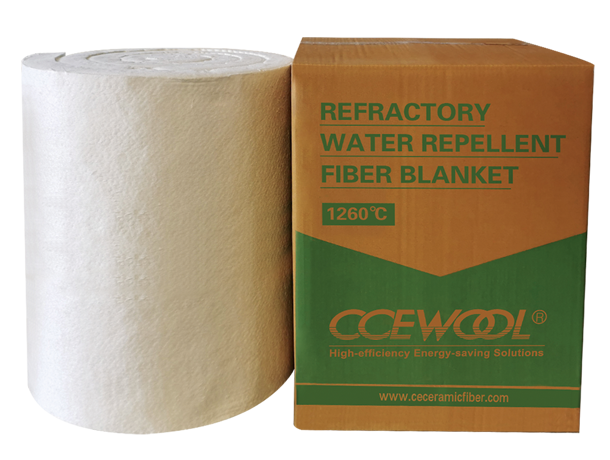

CCEWOOL® Water Repellent RCF Blanket

CCEWOOL® Water Repellent Ceramic Fiber Blanket is a refractory ceramic fiber hydrophobic (water-repellent) blanket made from high-strength needled blanket produced from refractory ceramic fiber spun fiber. It features a solvent-based high-temperature nano-hydrophobic material as a surface treatment agent and is manufactured using a unique double-sided internal needle punching process.

CCEWOOL® Water Repellent Ceramic Fiber Blanket achieves overall water repellency for refractory ceramic fiber blankets and exhibits excellent hydrophobic properties, greatly enhancing the insulation performance of the fibers. It solves the issues of reduced thermal conductivity and insulation body corrosion caused by moisture absorption in conventional fiber blankets.

Benefits

  • Ultra-Low Shot Content

    Shot content is a crucial factor in determining the thermal conductivity of fibers. Using imported high-speed centrifuges, our fibers achieve ultra-low shot content, demonstrating excellent thermal performance with low thermal conductivity and superior insulation properties in continuous high-temperature environments.

  • Minimal Shrinkage Rate

    Strict control of harmful impurities is essential for reducing thermal shrinkage and enhancing heat resistance. Through rigorous raw material management, we reduce impurity content to below 1%, ensuring low thermal shrinkage and high heat resistance in our fiber blankets.

  • Maximum Tensile Strength

    Tensile strength refers to the fiber blanket's ability to resist breaking under tension. Utilizing our innovative double-sided needling technique, our fiber blankets exceed 75 Kpa in tensile strength, effectively withstanding impacts in harsh environments and significantly extending their service life.

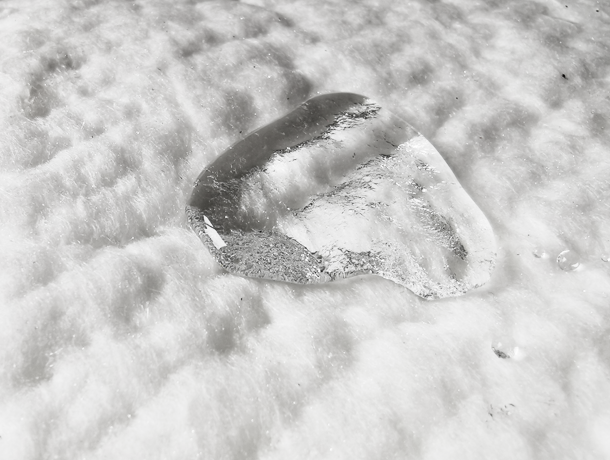

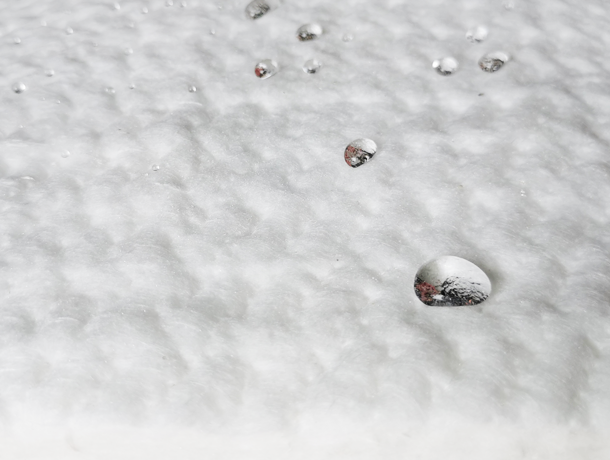

  • Water Repellency

    Water repellency over 99%, addressing issues of increased thermal conductivity and insulation corrosion due to moisture absorption in traditional fiber blankets.

Features of Water Repellent Ceramic Fiber Blanket

  • Excellent Hydrophobicity

    CCEWOOL® Water Repellent RCF Blanket effectively repels water, ensuring that its insulating properties are maintained even in moist or wet conditions.

  • Excellent Chemical Stability

    The blanket exhibits high chemical stability, resisting reactions with most chemicals and ensuring long-term durability in various environments.

  • Excellent Thermal Stability

    This product can withstand high temperatures without losing its structural integrity, providing reliable performance over time.

  • Excellent Tensile Strength

    With strong tensile strength, the blanket resists tearing and damage during installation and use, enhancing its longevity.

  • Low Thermal Conductivity

    CCEWOOL® Water Repellent RCF Blanket features low thermal conductivity, making it an efficient insulator that minimizes heat loss.

  • Low Heat Capacity

    The blanket has a low heat capacity, allowing it to quickly adjust to temperature changes, improving overall energy efficiency.

  • Excellent Insulation Properties

    This product offers superior insulation, effectively reducing heat transfer and maintaining optimal temperatures in various applications.

  • Good Sound Absorption

    In addition to its thermal properties, the blanket also provides good sound absorption, helping to reduce noise levels in industrial and commercial environments.

Application of Water Repellent Ceramic Fiber Blanket

Comprehensive Insulation and Soundproofing Solutions for Industrial, Commercial, and Maritime Applications

Sheathed steel beams and ventilation ducts;
Installation of firewalls, doors, and ceilings;
Insulation of cables and wires inside wall pipes;
Fire protection for ship decks and bulkheads;
Soundproofing enclosures and measurement rooms;
Sound insulation in industrial and power plants;
Sound barriers;
Building soundproofing;
Soundproofing for ships and automobiles.

Specifications & Sizes

CCEWOOL® Water Repellent RCF Blanket

Classification temperature 1100℃ (2012℉) 1260  (2300℉)
Operation Temp(℃)(℉) 982 (1800℉) 1050 (1922℉)
Density (kg/m3) 64/ 96/ 128(4,6,8lb/ft3)
Water content(%) ≤1
Hydrophobicity(%) ≥99
Shot Content(%) ≤15 ≤15
Color White
Chemical Composition of refractory ceramic blanket  (%)
Al2O3 ≥43 ≥44
SiO2 ≥52 ≥52
ZrO2 - -
Permanent Change on Heating (%), EN1094-1  After 24 hours
®950℃ (1742℉) ≤-3 -
®1000℃ (1832℉) - 1.5
®1100℃ (2012℉) - 2.5
®1200℃ (2192℉) - 3
®1300℃ (2372℉) - -
Tensile Strength(Kg/m3), EN1094-1 KPa
 64kg/m3(4lb/ft3) 28KPa min. 35KPa min.
 96kg/m3(6lb/ft3) 45KPa min. 55KPa min.
128kg/m3(8lb/ft3) 70KPa min. 75KPa min.
Heat Conductive Co-efficient W/(m·k)(128kg/m3)
200℃ (392℉) 0.07 0.07
400℃ (752℉) 0.12 0.12
600℃ (1112 ℉) 0.2 0.2
800℃ (1472℉) 0.35 0.3
1000℃ (1832℉) - 0.45
Thickness  Density (kg/m3) Length Width
mm 64 96 128 160 mm mm
25 7320 610, 1220
38 4880
50 - 3660
Thickness Density (lb/ft3) Length Width
in 4# 6# 8# 10# in in
1” 300” (24”,48”)
3/2” 200”
2” - 150”

Custom size are available.Contact Us
