RCF Blanket LZ 2550

Temperature Grade

1400°C (2550°F)

Chemistry

Alumina, Silica

CCEWOOL® Ceramic Fiber Blanket LZ 2550 includes zirconia in its raw materials to resist excessive shrinkage at high temperatures, featuring excellent heat resistance and the ability to withstand chemical and mechanical stress. Reach Registration Certificate will be provided as requested for each shipment.

Get a Quote

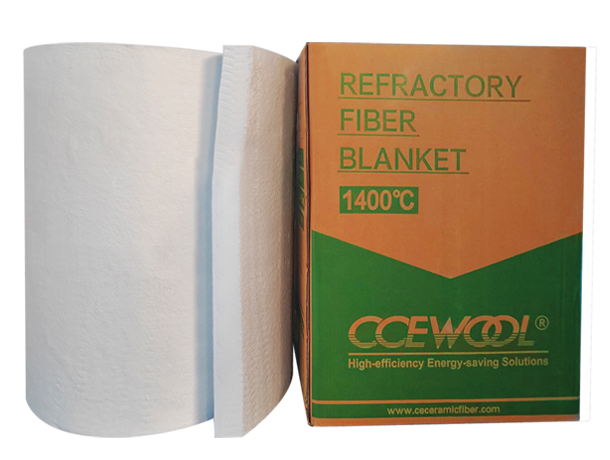

CCEWOOL® RCF Blanket LZ 2550

CCEWOOL® Ceramic Fiber Blanket LZ 2550 is primarily made from refractory ceramic fiber spun fiber as raw material with properly amount of Zr2O3 ,double-sided internal needle punching process. It is a lightweight, flexible refractory fiber insulation material resistant to high temperatures up to 1400°C (2550°F).

CCEWOOL® Ceramic Fiber Blanket LZ 2550 exhibit excellent toughness, elasticity, and workability, making them versatile high-temperature insulation products.

Benefits

  • Ultra-Low Shot Content

    Shot content is a crucial factor in determining the thermal conductivity of fibers. Using imported high-speed centrifuges, our fibers achieve ultra-low shot content, demonstrating excellent thermal performance with low thermal conductivity and superior insulation properties in continuous high-temperature environments.

  • Minimal Shrinkage Rate

    Strict control of harmful impurities is essential for reducing thermal shrinkage and enhancing heat resistance. Through rigorous raw material management, we reduce impurity content to below 1%, ensuring low thermal shrinkage and high heat resistance in our fiber blankets.

  • Maximum Tensile Strength

    Tensile strength refers to the fiber blanket's ability to resist breaking under tension. Utilizing our innovative double-sided needling technique, our fiber blankets exceed 85 Kpa in tensile strength, effectively withstanding impacts in harsh environments and significantly extending their service life.

  • Lowest Thermal Conductivity

    Through strict quality control and high-standard production processes, CCEWOOL® minimizes shot content and meticulously controls bulk density, achieving the lowest thermal conductivity. This provides customers with exceptional insulation performance and more efficient energy-saving solutions.

Features of Ceramic Fiber Blanket LZ 2550

  • High Compressive Strength and Long Service Life

    CCEWOOL® RCF Blanket LZ 2550 offers high compressive strength, ensuring durability and a long service life even in demanding applications.

  • Low Heat Capacity and Low Thermal Conductivity

    This blanket provides excellent insulation with low heat capacity and low thermal conductivity, effectively minimizing heat loss.

  • Non-Brittle Material with Good Toughness

    The material is non-brittle and has good toughness, making it resistant to cracking and breaking under stress.

  • Small Dimensional Tolerance and Good Flatness

    With precise dimensional tolerance and good flatness, the blanket ensures a snug fit and reliable performance in various applications.

  • Easy to Cut and Install, Convenient for Construction

    CCEWOOL® RCF Blanket LZ 2550 is easy to cut and install, simplifying construction and reducing installation time and labor costs.

  • Excellent Resistance to Wind Erosion

    The blanket has excellent resistance to wind erosion, maintaining its integrity and insulating properties in windy conditions.

  • Continuous Production with Uniform Fiber Distribution and Stable Performance

    Produced continuously with uniform fiber distribution, the blanket ensures consistent performance and reliability.

  • Excellent Sound Absorption and Noise Reduction Performance

    In addition to thermal insulation, the blanket provides excellent sound absorption and noise reduction, improving the acoustic environment in various settings.

Application of Ceramic Fiber Blanket LZ 2550

High-Temperature Insulation Solutions for Industrial Kilns and Pipelines

Industrial kiln linings and backing materials with a long-term operating temperature between 1150°C to 1250°C;
Insulation materials for industrial kiln expansion joints, furnace doors, and top covers;
Insulation materials for high-temperature pipelines;
High-temperature insulation gaskets with a long-term operating temperature below 1250°C;
Raw materials for zirconia-alumina refractory ceramic fiber modules/folded blocks.

Specifications & Sizes

CCEWOOL® RCF Blanket LZ 2550

Classification temperature 1400 (2550℉)
Operation Temp(℃)(℉) 1200℃ (2192℉)
Density (kg/m3) 64/ 96/ 128/160(4,6,8,10lb/ft3)
Shot Content(%) ≤15
Color White
Chemical Composition of refractory ceramic blanket  (%)
Al2O3 ≥44
SiO2 ≥50
ZrO2 ≥5
Permanent Change on Heating (%), EN1094-1
 After 24 hours
®950℃ (1742℉) -
®1000℃ (1832℉) -
®1100℃ (2012℉) 1.5
®1200℃ (2192℉) 2
®1300℃ (2372℉) 3
®1400℃ (2552℉) -
Tensile Strength(Kg/m3), EN1094-1 KPa
                 64kg/m3(4lb/ft3) 45
            96kg/m3(6lb/ft3) 65
128kg/m3(8lb/ft3) 85
160kg/m3(10lb/ft3) 125
Heat Conductive Co-efficient W/(m·k)(128kg/m3)
200℃ (392℉) 0.07
400℃ (752℉) 0.12
600℃ (1112 ℉) 0.2
800℃ (1472℉) 0.3
1000℃ (1832℉) 0.43
Thickness  Density (kg/m3) Length Width
mm 64 96 128 160 mm mm
6 - - 7200 610, 1220
13 - 14640
19 - 9760
25 7320
38 4880
50 - 3660
Thickness  Density (lb/ft3) Length Width
in 4# 6# 8# 10# in in
1/4” - - 300” 24”,48”
1/2” - 600”
3/4” - 400”
1” 300”
3/2” 200”
2” - 150”

Custom size are available.Contact Us
