LBP Blanket 2192

Temperature Grade

1200°C (2192°F)

Chemistry

Silicon, calcium, magnesium (AES)

The CCEWOOL® Low Biopersistent Fiber Blanket LT introduces MgO and CaO into its raw materials, enhancing the fiber's softness and elasticity while providing excellent thermal and mechanical properties. Certified by the German Fraunhofer Laboratory for solubility testing.

Get a Quote

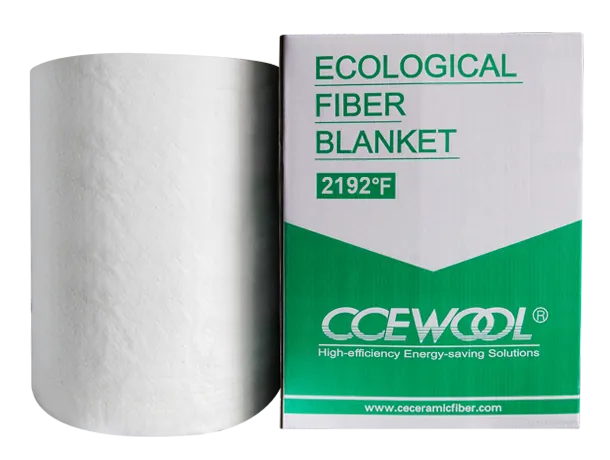

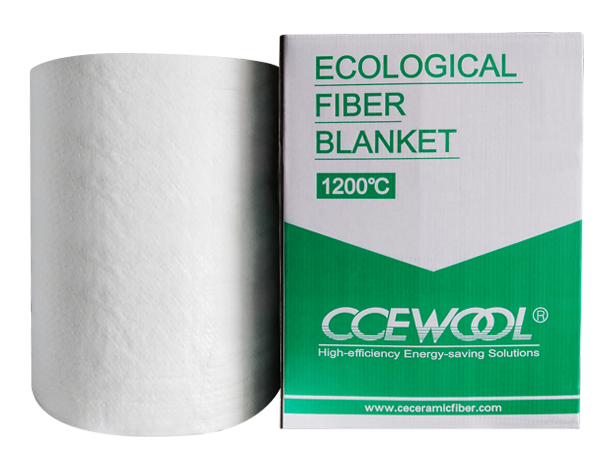

CCEWOOL® LBP Blanket 2192

CCEWOOL® Low Biopersistent Fiber Blanket 2192 is made from alkaline earth silicate and is a calcium-magnesium insulating fiber. It is referred to as a soluble fiber because it has some solubility in bodily fluids. The introduction of MgO and CaO in soluble fibers enhances their flexibility, elasticity, and provides excellent thermal and mechanical performance.

CCEWOOL® Low Biopersistent Fiber Blanket 2192 exhibits outstanding chemical stability and is unaffected by most chemicals except for hydrofluoric acid, phosphoric acid, and concentrated alkalis. If it becomes wet or saturated with water or steam, its thermal and physical properties are not compromised. It's certified by Fraunhofer laboratory.

Benefits

  • Ultra-Low Shot Content

    Shot content is a crucial factor in determining the thermal conductivity of fibers. Using imported high-speed centrifuges, our fibers achieve ultra-low shot content, demonstrating excellent thermal performance with low thermal conductivity and superior insulation properties in continuous high-temperature environments.

  • Minimal Shrinkage Rate

    Strict control of harmful impurities is essential for reducing thermal shrinkage and enhancing heat resistance. Through rigorous raw material management, we reduce impurity content to below 1%, ensuring low thermal shrinkage and high heat resistance in our fiber blankets.

  • Maximum Tensile Strength

    Tensile strength refers to the fiber blanket's ability to resist breaking under tension. Utilizing our innovative double-sided needling technique, our fiber blankets exceed 75 Kpa in tensile strength, effectively withstanding impacts in harsh environments and significantly extending their service life.

  • Lowest Thermal Conductivity

    Through strict quality control and high-standard production processes, CCEWOOL® minimizes shot content and meticulously controls bulk density, achieving the lowest thermal conductivity. This provides customers with exceptional insulation performance and more efficient energy-saving solutions.

Features of Low Biopersistent Fiber Blanket 2192

  • Low Thermal Conductivity

    Ensures efficient insulation by minimizing heat transfer, making it ideal for high-temperature applications.

  • Low Thermal Storage

    Reduces energy consumption by lowering the amount of heat retained, leading to quicker thermal response times.

  • High Tensile Strength

    Provides durability and reliability in demanding environments, ensuring the material maintains its integrity under stress.

  • Thermal Shock Resistance

    Withstands rapid temperature changes without cracking or damage, ensuring long-term performance in fluctuating conditions.

  • Lightweight

    Facilitates easy installation and handling, reducing labor costs and increasing efficiency in various applications.

  • Excellent Corrosion Resistance

    Offers long-lasting protection against chemical attacks and environmental degradation, extending the lifespan of the insulation.

Application of Low Biopersistent Fiber Blanket 2192

Versatile High-Temperature Insulation Solutions for Industrial and Commercial Applications

Reusable insulation for steam and gas turbines;
High-temperature kiln and furnace insulation;
Furnace door linings and seals;
Furnace repairs;
Boiler and incinerator linings;
Seals and gaskets;
Automotive heat shields;
Appliance insulation;
Fire protection;
Duct, stack and flue linings;
Molten metal splash protection.

Specifications & Sizes

CCEWOOL® LBP Blanket 2192

Classification Temperature (℃)(℉) 1200℃(2192℉)
Chemical Composition (%)
SiO2 65-68
CaO 27-33
MgO 2–7
CaO+MgO -
Color Light Bluish
Shot Content (%) ≤12
Density (kg/m³)(4lb/ft³) 96(6lb/ft³) 128(8lb/ft³)
Tensile Strength (kPa) 55 75
Permanent Linear Shrinkage (%) 1200℃ x 24h ≤2.8
Thermal Conductivity (W/m·K)
200℃ 0.05 0.04
400℃ 0.09 0.08
600℃ 0.19 0.15
800℃ 0.3 0.2
1000℃ 0.48 0.28
1200℃ 0.69 0.49
Thickness  Density (kg/m3) Length Width
mm 96 128 160 mm mm
13 14640 610, 1220
19 9760
25 7320
38 4880
50 - 3660
Thickness  Density (lb/ft³) Length Width
in 6# 8# 10# in in
1/2” 600” 24”,48”
3/4” 400”
1” 300”
3/2” 200”
2” - 150”

Custom size are available.Contact Us
