RCF Chopped Fiber

Temperature Grade

1260℃ (2300℉)

Chemistry

Alumina, Silica

Using an automated operating system, CCEWOOL® Ceramic Chopped Fiber ensures more uniform chopped fibers, with more precise particle sizes of the chopped fibers.

Get a Quote

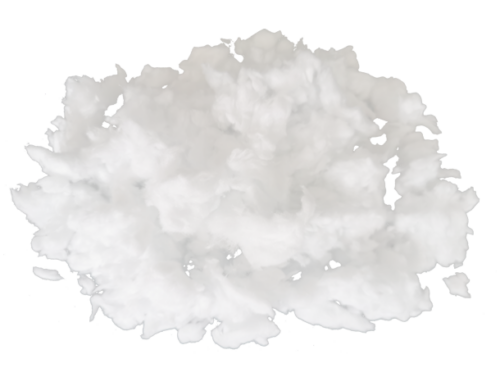

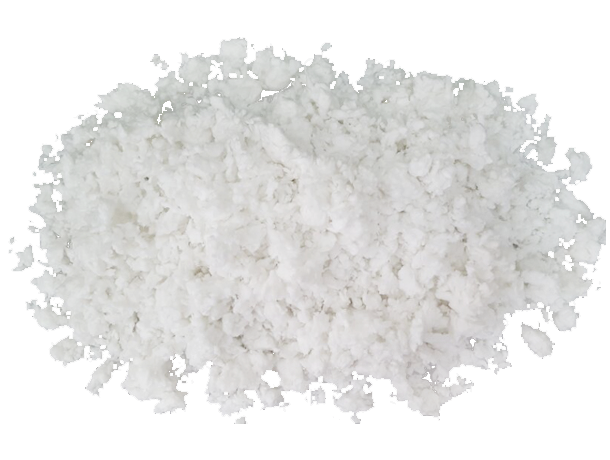

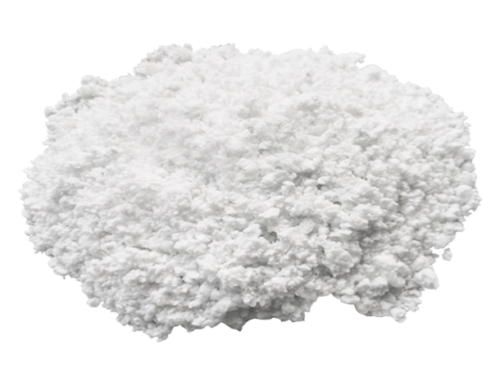

CCEWOOL® RCF Chopped Fiber

CCEWOOL® RCF Chopped Fiber is manufactured from CCEWOOL® ceramic fiber bulk using professional automated chopping equipment. Through a precisely controlled mechanical chopping process, the product achieves a more uniform fiber length distribution, enabling it to meet the requirements of various industrial applications and downstream processing methods.

CCEWOOL® RCF Chopped Fiber is primarily used as an important raw material for ceramic fiber boards, ceramic fiber papers, and other wet-formed fiber products. It is also widely used in insulation systems for high-temperature equipment such as industrial furnaces, boilers, pipelines, and chimneys. The upgraded automated chopping system enables stable control of fiber length and particle size distribution, providing improved stability and consistency during production and processing.

According to different production process requirements, CCEWOOL® RCF Chopped Fiber is available in multiple specifications, including:
Milled Fiber
Fine Chopped Fiber
Medium Chopped Fiber
Coarse Chopped Fiber

Benefits

  • Automated Processing for High-Quality Ceramic Fiber Raw Material

    Produced using automated shredders, this fiber provides premium raw material for ceramic fiber boards and papers.

  • Customizable Sizes and Particle Dimensions

    We customize product sizes and particle dimensions based on customer requirements, ensuring precise compatibility with various applications.

  • Ideal for Insulation in Industrial Furnaces and Boilers

    Widely used in industrial furnaces, boilers, pipelines, and chimneys, it delivers excellent thermal insulation performance.

  • Outstanding Insulation Performance to Improve Energy Efficiency

    This material provides excellent thermal insulation, enhancing energy efficiency in industrial equipment.

Features of RCF Chopped Fiber

  • Low Heat Capacity and Thermal Conductivity

    Minimizes heat transfer and storage, ensuring energy efficiency and consistent insulation.

  • Excellent Chemical Stability

    Resistant to chemical reactions, providing reliable performance in harsh environments.

  • Outstanding Thermal Stability and High-Temperature Durability

    Resists degradation and pulverization even under extreme heat.

  • No Binders or Corrosive Substances

    Free of harmful materials, ensuring safety and compatibility with sensitive applications.

  • Excellent Sound Absorption

    Effectively reduces noise, making it ideal for soundproofing in various settings.

Monolithic Spray Insulation Applications

Highly efficient energy-saving solutions

CCEWOOL® RCF Chopped Fiber can be used to produce monolithic spray-applied insulation materials, suitable for spray insulation construction in irregular areas and complex structural sections of industrial furnace linings.
· Industrial furnace linings
· Vessel linings
· Incinerators, flues, ducts, and stacks
· Refractory lining upgrades
· Lining over refractory (LOR)
· Fiber over fiber (FOF)
· Low-mass kiln car decks
· Ladle preheating stands
· Back-up layers for high-density sprayed refractories
· Boiler water-wall insulation
· Furnace lining maintenance and repair
· Fire protection
· Back-up layers for brick, plastic refractories, and castables
· Annealing furnace bases
· Heat treatment furnaces and kiln car platforms
· Incinerator bottoms and process heaters
· High-velocity applications
· Composite lining systems

Raw Material & Insulation Filling Applications

Highly efficient energy-saving solutions

CCEWOOL® RCF Chopped Fiber can also serve as a basic raw material for various high-temperature insulation products and is suitable for insulation filling in confined spaces and irregular areas.
· Raw material for ceramic fiber boards, fiber papers, textiles, and vacuum-formed shapes
· Insulation filling material for industrial furnaces and other high-temperature equipment
· Expansion joint filler
· Furnace bottom sealing material
· Pipe sealing material
· Burner block filler
· Chimney and flue insulation

Specifications & Sizes

CCEWOOL® RCF Chopped Fiber
Classification Temperature (°C) 1260 (2300°F) 1400HA (2550°F) 1430HZ (2600°F)
Chemical Composition(%)
Al2O3 ≥43 ≥52 ≥35
SiO2 ≥54 ≥47 ≥49
ZrO2 - - ≥15
Color White
Shot Content(%) ≤12

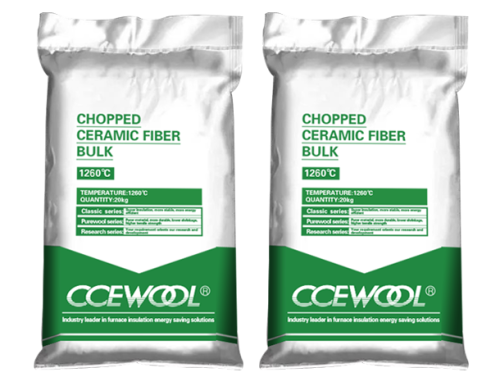

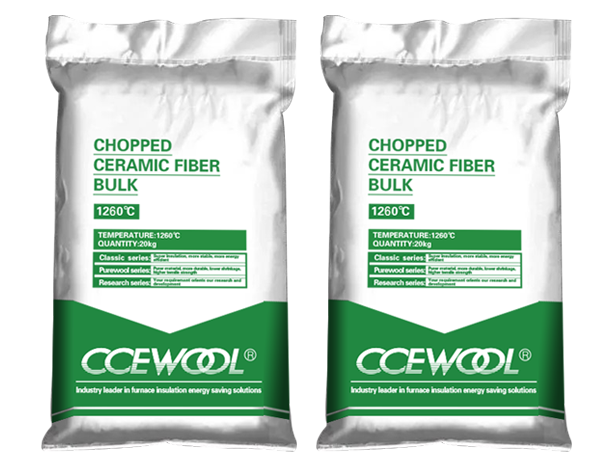

Packing Vacuumed plastic bag+pallet
Temperature Grade Fiber Type Fibre Coating Fiber Diameter Description
2300°F (1260°C) Blown None 2-4μm Milled Fiber
2300°F (1260°C) Blown None 2-4μm Fine Chopped Fiber
2300°F (1260°C) Blown None 2-4μm Medium Chopped Fiber
2300°F (1260°C) Blown None 2-4μm Coarse Chopped Fiber
2550°F (1400°C) Blown None 2-4μm Chopped Fiber
2300°F (1260°C) Spun None 3-5μm Chopped Fiber
2600°F (1430°C) Spun None 3-5μm Chopped Fiber

Custom size are available.Contact Us
