RCF Tape 2300

Temperature Grade

1260°C (2300°F)

Chemistry

Alumina, Silica

CCEWOOL® Ceramic Fiber Tape possesses excellent chemical stability, outstanding resistance to thermal shock, corrosion resistance, and resistance to damage caused by mechanical vibrations and stress.

Get a Quote

CCEWOOL® RCF Tape 2300

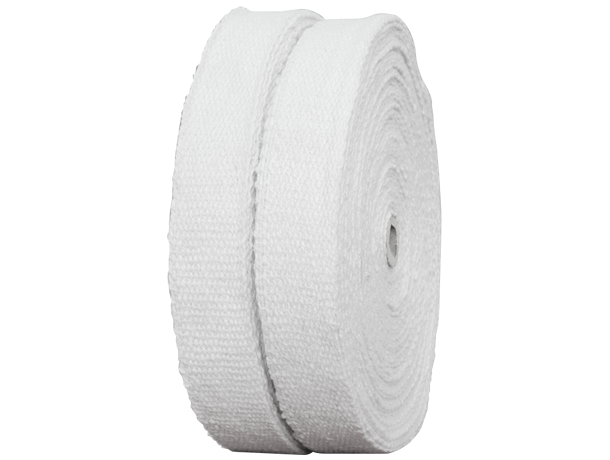

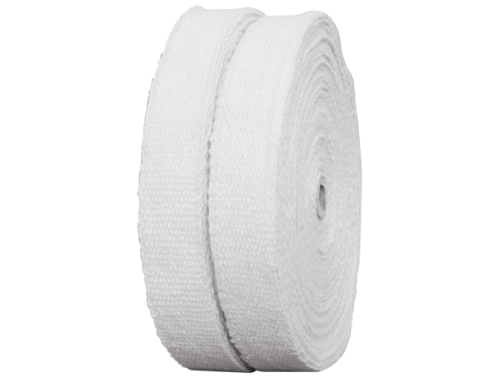

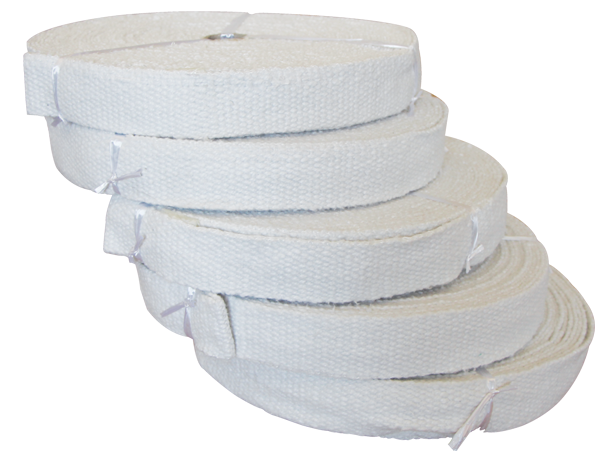

CCEWOOL® Ceramic Fiber Tape is made from high-quality refractory ceramic fiber yarn, reinforced with either glass filament or stainless steel wire. It possesses excellent chemical stability, outstanding resistance to thermal shock, corrosion resistance, and resistance to damage caused by mechanical vibrations and stress. It is highly suitable for industrial applications that require sturdy, flexible, and high-temperature-resistant materials.

Benefits

  • Ultra-Low Shot Content

    Shot content is a crucial factor in determining the thermal conductivity of fibers. Using imported high-speed centrifuges, our fibers achieve ultra-low shot content, demonstrating excellent thermal performance with low thermal conductivity and superior insulation properties in continuous high-temperature environments.

  • Minimal Shrinkage Rate

    Strict control of harmful impurities is key to reducing thermal shrinkage and enhancing heat resistance. Through rigorous raw material management, we reduce impurity content to below 1%, ensuring low thermal shrinkage and high heat resistance in our fiber textiles.

  • Maximum Tensile Strength

    Tensile strength refers to the fiber textile's ability to resist breaking under tension. Utilizing unique production techniques, our fiber textiles possess superior tensile strength, effectively withstanding impacts in harsh environments and significantly extending their service life.

  • Lowest Thermal Conductivity

    Through strict quality control and high-standard production processes, CCEWOOL® minimizes shot content and meticulously controls bulk density, achieving the lowest thermal conductivity. This provides customers with exceptional insulation performance and more efficient energy-saving solutions.

Features of Ceramic Fiber Tape

  • Low Thermal Conductivity

    CCEWOOL® RCF Tape 2300 has low thermal conductivity, which effectively minimizes heat transfer, making it an excellent insulator for high-temperature applications.

  • Excellent Thermal Shock Resistance and Stability

    CCEWOOL® RCF Tape 2300 can withstand rapid temperature changes without losing its structural integrity or performance, ensuring reliable protection in fluctuating thermal environments.

  • Excellent Tensile Strength

    The tape offers high tensile strength, making it durable and resistant to mechanical stress, ensuring long-lasting performance even under demanding conditions.

  • Sound Insulation

    In addition to thermal insulation, CCEWOOL® RCF Tape 2300 provides effective sound insulation, helping to reduce noise levels in various industrial applications.

  • Easy to Cut and Install

    The tape is easy to cut and install, allowing for quick customization and application, saving time and reducing labor costs.

  • Asbestos-Free

    Containing no asbestos, this tape is safe to handle and use, posing no health risks to installers and end-users, and being environmentally friendly.

  • Chemical Corrosion Resistance

    CCEWOOL® RCF Tape 2300 is resistant to chemical corrosion from acids, oils, and water vapor, ensuring durability and reliability in chemically harsh environments.

Application of Ceramic Fiber Tape

Comprehensive Solutions for Industrial Thermal Insulation and High-Temperature Applications

Industrial thermal insulation, pipe and cable insulation coating, exhaust piping insulation coating, bolt flange connection, thermal radiation shielding, high temperature furnace door curtain.

Specifications & Sizes

CCEWOOL® RCF Tape 2300

Classification Temperature (℃) 1260(2300℉)
Name Glass Filament Reinforced Tape Inconel Wire Reinforced Tape
Density(kg/m3) 550
Long-term Operation Temp 550℃ 1050℃
Water Content (%) ≤2
Organic Content(%) ≤15
Shrinkage at 982℃ (%) -1
Packing of ceramic tape Braided Bag/ Carton
Specification (T x W x L) 2mm x 20mm x 30m (1/12” x 4/5” x 100’)
3mm x 20mm x 30m (1/8” x 4/5” x 100’)
2mm x 30mm x 30m (1/12” x 6/5” x 100’)
3mm x 30mm x 30m (1/8” x 6/5” x 100’)
2mm x 40mm x 30m (1/12” x 8/5” x 100’)
3mm x 40mm x 30m (1/8” x 8/5” x 100’)
2mm x 50mm x 30m (1/12” x 2” x 100’)
3mm x 50mm x 30m (1/8” x 2” x 100’)
2mm x 60 mm x 30m (1/12” x 12/5” x 100’)
3mm x 60 mm x 30m (1/8” x 12/5” x 100’)
2mm x 75 mm x 30m (1/12” x 3” x 100’)
3mm x 75 mm x 30m (1/8” x 3” x 100’)
2mm x 80 mm x 30m (1/12” x 16/5” x 100’)
3mm x 80 mm x 30m (1/8” x 16/5” x 100’)
2mm x 100 mm x 30m (1/12” x 4” x 100’)
3mm x 100 mm x 30m (1/8” x 4” x 100’)
2mm x 150 mm x 30m (1/12” x 6” x 100’)
3mm x 150 mm x 30m (1/8” x 6” x 100’)

Custom size are available.Contact Us
