RCF Cloth 2300

Temperature Grade

1260°C (2300°F)

Chemistry

Alumina, Silica

CCEWOOL® Ceramic Fiber Cloth is available in two variations, reinforced with either nickel-chromium alloy wire or glass filament, and it has excellent wear resistance and resistance to mechanical damage, maintaining high strength at high temperatures.

Get a Quote

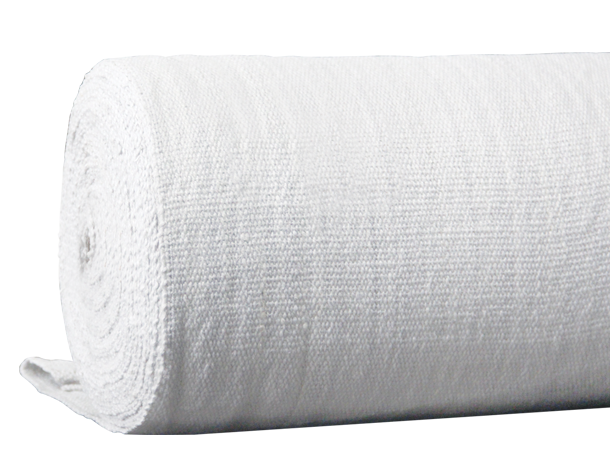

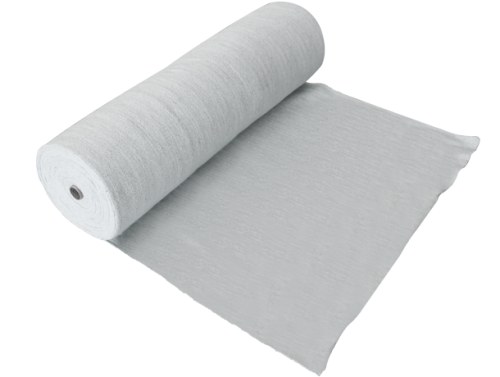

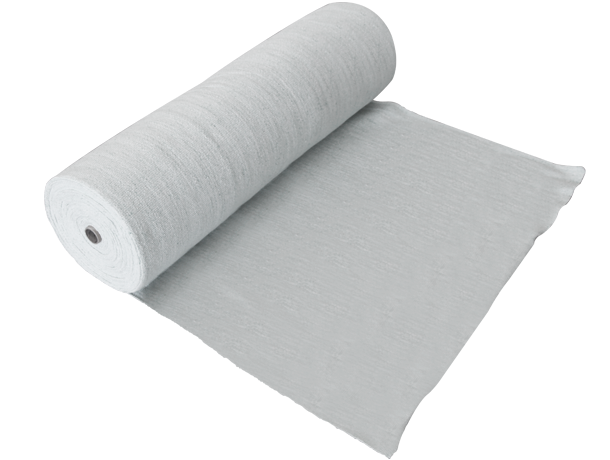

CCEWOOL® RCF Cloth 2300

CCEWOOL® Ceramic Fiber Cloth is woven from high-quality refractory ceramic fiber yarn and is a high-performance industrial-grade refractory ceramic fiber fabric suitable for high-temperature applications. It is lightweight, flexible, and available in various thicknesses, widths, and densities.

CCEWOOL® Ceramic Fiber Cloth contains a certain amount of organic fibers, which gradually carbonize and turn black when heated, without affecting its normal insulation performance. As the temperature continues to rise, the product will gradually turn white again as the organic fibers are completely carbonized. It is available in two variations, reinforced with either nickel-chromium alloy wire or glass filament, and it has excellent wear resistance and resistance to mechanical damage, maintaining high strength at high temperatures.

CCEWOOL® Ceramic Fiber Cloth is easy to manufacture, has low shrinkage, and remains flexible even after exposure to high temperatures.

Benefits

  • Ultra-Low Shot Content

    Shot content is a crucial factor in determining the thermal conductivity of fibers. Using imported high-speed centrifuges, our fibers achieve ultra-low shot content, demonstrating excellent thermal performance with low thermal conductivity and superior insulation properties in continuous high-temperature environments.

  • Minimal Shrinkage Rate

    Strict control of harmful impurities is key to reducing thermal shrinkage and enhancing heat resistance. Through rigorous raw material management, we reduce impurity content to below 1%, ensuring low thermal shrinkage and high heat resistance in our fiber textiles.

  • Maximum Tensile Strength

    Tensile strength refers to the fiber textile's ability to resist breaking under tension. Utilizing unique production techniques, our fiber textiles possess superior tensile strength, effectively withstanding impacts in harsh environments and significantly extending their service life.

  • Lowest Thermal Conductivity

    Through strict quality control and high-standard production processes, CCEWOOL® minimizes shot content and meticulously controls bulk density, achieving the lowest thermal conductivity. This provides customers with exceptional insulation performance and more efficient energy-saving solutions.

Features of Ceramic Fiber Cloth

  • Low Thermal Conductivity

    CCEWOOL® RCF Cloth 2300 has low thermal conductivity, which effectively minimizes heat transfer, making it an excellent insulator for high-temperature applications.

  • Excellent Thermal Shock Resistance and Stability

    This cloth can withstand rapid temperature changes without losing its structural integrity or performance, ensuring reliable protection in fluctuating thermal environments.

  • Excellent Tensile Strength

    The cloth offers high tensile strength, making it durable and resistant to mechanical stress, ensuring long-lasting performance even under demanding conditions.

  • Sound Insulation

    In addition to thermal insulation, CCEWOOL® RCF Cloth 2300 provides effective sound insulation, helping to reduce noise levels in various industrial applications.

  • Easy to Cut and Install

    The cloth is easy to cut and install, allowing for quick customization and application, saving time and reducing labor costs.

  • Asbestos-Free

    Containing no asbestos, this cloth is safe to handle and use, posing no health risks to installers and end-users, and being environmentally friendly.

  • Chemical Corrosion Resistance

    CCEWOOL® RCF Cloth 2300 is resistant to chemical corrosion from acids, oils, and water vapor, ensuring durability and reliability in chemically harsh environments.

Application of Ceramic Fiber Cloth

Versatile Solutions for High-Temperature Insulation and Sealing Applications

Gasket and wrapping material;
Induction heating furnace coil insulation;
Cable and wire insulation (thermal and/or electrical);
Infrared radiating diffusers;
Boiler tadpole gaskets;
Fuel line insulation;
Furnace heat zone separators;
Exhaust hood curtains;
Pipe hanger insulation.

Specifications & Sizes

CCEWOOL® RCF Cloth 2300

Classification Temperature (℃) 1260(2300℉)
Name Glass Filament Reinforced Cloth Inconel Wire Reinforced Cloth
Density(kg/m3) 550
Long-term Operation Temp 550 1050
Water Content ≤2
Organic Content(%) ≤15
Shrinkage at 982℃ (%) -1
Packing of ceramic rope Braided Bag/ Carton
Specification (T x W x L) 2mm x 1m x 30m (1/12” x 40” x 100’)
3mm x 1m x 30m (1/8” x 40” x 100’)
5mm x 1m x 20m (1/5” x 40” x 66’)
6mm x 1m x 20m (1/4” x 40” x 66’)

Custom size are available.Contact Us
