RCF Blanket DB 2012

Temperature Grade

1100°C (2012°F)

Chemistry

Alumina, Silica

Compared to traditional insulation materials, CCEWOOL® Ceramic Fiber Blanket DB has a lower thermal conductivity and higher insulation performance. Reach Registration Certificate will be provided as requested for each shipment.

Get a Quote

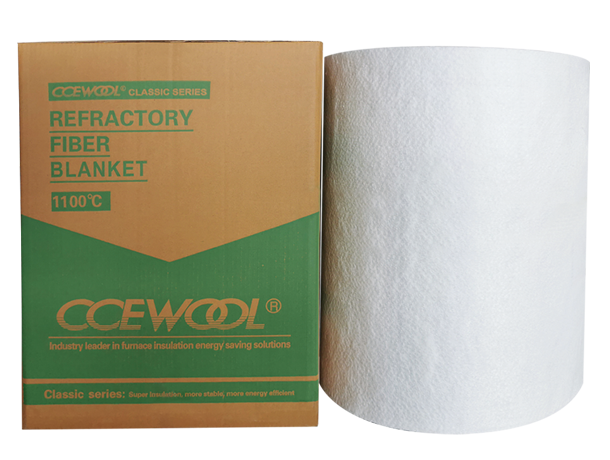

CCEWOOL® RCF Blanket DB 2012

CCEWOOL® Ceramic Fiber Blanket DB 2012 is a new typel backing refractory insulation material in white appearance, uniform dimensions, and combines fire resistance, insulation, and thermal retention functions in one, without any binders. Refractory Ceramic fiber blankets are unaffected by oil erosion and can quickly regain their thermal performance and physical characteristics after drying. It is primarily used for furnace lining insulation and is an economically effective insulation filling material.

The installation speed of CCEWOOL® Ceramic Fiber Blanket DB 2012 can be four times faster than regular block insulation materials and comes at a competitive price compared to mineral wool.

Benefits

  • New Insulation Backing Material

    This new refractory insulation backing material is bright white, with uniform dimensions and excellent appearance quality.

  • Outstanding Oil Resistance

    The ceramic fiber blanket is unaffected by oil exposure and can fully restore its thermal and physical properties after drying.

  • Safe and Efficient Furnace Lining Insulation Solution

    Asbestos-free, it is primarily used for furnace lining insulation, providing an economical and effective thermal filler.

  • Quick Installation and High Cost-Effectiveness

    Installation is four times faster than traditional block insulation materials, and its competitive pricing makes it comparable to mineral wool.

Features of Ceramic Fiber

Blanket DB 2012

  • Excellent Chemical Stability

    Resistant to chemical reactions, ensuring durability in harsh environments.

  • Excellent Thermal Stability

    Maintains performance and structure even under extreme temperatures.

  • Excellent Tensile Strength

    Strong and durable, ideal for applications requiring robust materials.

  • Low Thermal Conductivity

    Effectively insulates by minimizing heat transfer, improving energy efficiency.

  • Low Heat Capacity

    Allows for quick temperature changes, enhancing operational efficiency.

  • Excellent Insulation Properties

    Provides superior thermal and electrical insulation, making it versatile for various applications.

Application of Ceramic Fiber Blanket DB

Back-Up for Lining Systems

CCEWOOL® RCF Blanket DB 2012 serves as an effective back-up insulation for lining systems, providing additional thermal protection and enhancing overall system efficiency.

Filler For Insulating Pads

The blanket is used as a filler in insulating pads, ensuring uniform insulation and improving thermal resistance in various industrial applications.

Expansion Joint Material

CCEWOOL® RCF Blanket DB 2012 is ideal for use in expansion joints, accommodating thermal expansion and contraction while maintaining excellent insulation properties.

Specifications & Sizes

CCEWOOL® RCF Blanket DB 2012
Classification temperature 1100℃ (2012℉)
Operation Temp(℃)(℉) 982 (1800℉)
Density (kg/m3) 64/ 96/ 128/160(4,6,8,10lb/ft3)
Shot Content(%) ≤15
Color White
Chemical Composition of refractory ceramic blanket  (%)
Al2O3 ≥43
SiO2 ≥52
ZrO2 -
Permanent Change on Heating (%), EN1094-1 After 24 hours
@950℃ (1742℉) ≤-3
@1000℃ (1832℉) -
@1100℃ (2012℉) -
@1200℃ (2192℉) -
@1300℃ (2372℉) -
@1400℃ (2552℉) -
Tensile Strength(Kg/m3), EN1094-1 KPa
64kg/m3(4lb/ft3) 28
96kg/m3(6lb/ft3) 45
128kg/m3(8lb/ft3) 70
160kg/m3(10lb/ft3) -
Heat Conductive Co-efficient W/(m·k)(128kg/m3)
200℃ (392℉) 0.07
400℃ (752℉) 0.12
600℃ (1112 ℉) 0.2
800℃ (1472℉) 0.35
1000℃ (1832℉) -
Thickness  Density (kg/m3) Length Width
mm 64 96 128 160 mm mm
6 - - ○ ○ 7200 610, 1220
13 - √ √ ○ 14640
19 - √ √ ○ 9760
25 ○ √ √ √ 7320
38 ○ √ √ √ 4880
50 ○ √ √ - 3660
Thickness  Density (lb/ft3) Length Width
in 4# 6# 8# 10# in in
1/4” - - ○ ○ 300” 24”,48”
1/2” - √ √ ○ 600”
3/4” - √ √ ○ 400”
1” ○ √ √ √ 300”
3/2” ○ √ √ √ 200”
2” ○ √ √ - 150”

Custom size are available.Contact Us
