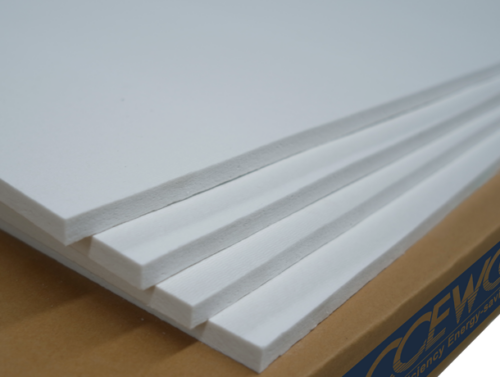

LBP Board 2192

Temperature Grade

1200℃ (2192℉)

Chemistry

Silicon, calcium, magnesium (AES)

CCEWOOL® Low Biopersistent Fiber Board 2192 is primarily composed of alkaline earth silicate (AES) fibers. It is soluble and biodegradable in human body fluids, making it harmless to both humans and the environment. It is truly a green and environmentally friendly product.

Get a Quote

CCEWOOL® Rock Wool Board 80

CCEWOOL® Rock Wool Board 80 is a high-performance rigid stone wool insulation board designed for exterior continuous insulation systems in both residential and commercial buildings. It offers exceptional thermal, fire-resistant, and acoustic performance.

This product is fire-resistant and does not produce smoke or propagate flames, providing a critical line of defense that keeps occupants safe and reduces property damage during a fire. It helps delay the spread of fire and offers valuable extra time for evacuation and firefighting efforts, minimizing damage.

CCEWOOL® Rock Wool Board 80 integrates thermal insulation, fire safety, and soundproofing into a comprehensive solution that ensures safe, comfortable, and energy-efficient buildings.

Benefits

  • Noise Reduction and Enhanced Comfort

    Rock wool materials provide excellent sound absorption, effectively reducing noise and creating a quiet and productive environment.

  • Vapor Permeable, Reduces Moisture Risk

    The product's vapor permeability enhances the drying ability of wall systems, reducing the potential for condensation and water accumulation that could cause structural damage.

  • Superior Fire Protection for Safety

    With exceptional fire resistance, it can withstand extreme temperatures up to 2,150°F (1,177°C), creating a robust protective barrier.

  • Minimizes Thermal Bridging, Improves Energy Efficiency

    Effectively reduces thermal bridging in wood-framed buildings, significantly improving the overall thermal performance and energy efficiency of the structure.

Features of Rock Wool Board 80

  • Easy to Cut

    Can be easily cut using a bread knife, making installation and construction quick and convenient.

  • Non-Combustible

    With a melting point of up to 1,177°C (2,150°F), it provides excellent high-temperature performance, ensuring fire safety.

  • Excellent Sound Absorption

    Offers superior sound absorption, effectively reducing noise transmission and enhancing the acoustic environment of buildings.

  • Good Vapor Permeability

    The breathable design allows moisture to escape, preventing water accumulation and promoting a dry building envelope.

  • Durable and Corrosion-Resistant

    Will not rot, nor promote the growth of fungi or mildew, ensuring long-term durability.

  • Low Moisture Absorption

    The material has extremely low water absorption, maintaining its thermal performance over time.

  • Chemically Inert

    Does not corrode, ensuring no detrimental effects on surrounding materials or systems.

  • Water-Repellent

    Effectively prevents moisture penetration, making it suitable for various environmental conditions.

  • Eco-Friendly Manufacturing

    Free of CFCs and HCFCs, made from natural and recycled materials, providing a sustainable, environmentally friendly solution.

Application of Rock Wool Board

Versatile Insulation Solutions for Construction

Non-Structural Thermal Insulation;
Single- and Three-Coat Insulated Stucco Cladding;
Basement Continuous Insulation;
Exterior Perimeter Insulation around Foundation;
Under Flat Concrete Slab Insulation;
Residential Wood-Framed Cathedral Ceiling Insulation.

Specifications & Sizes

CCEWOOL® LBP Board 2192
Classification Temperature (℃ ) 1200℃(2192℉)
Color Light Bluish
Density (kg/m³) 300
Modules of Rupture (MPa) ≥0.25
Compressive Strength (MPa, 10% relative deformation) 0.15
Loss of Ignition (%) ≤7
Permanent Linear Shrinkage (%) 1100℃ x 24h ≤2.0
Thermal Conductivity (W/m·K)
200℃ 0.05
400℃ 0.08
600℃ 0.1
800℃ 0.12
1000℃ 0.14

Custom size are available.Contact Us

Resources Downloads

View More

Adhere to Strict Quality Control System

CCEWOOL® products have won a number of authoritative certifications, including rach certification, Fraunhofer laboratory certification and CE certification, which fully prove the excellent quality of our products. These certificates are not only a strong guarantee of the quality of our products, but also ensure a worry-free process for your order. If you need to know more certification details or request relevant certificates, please feel free to contact us!
