RCF Blanket 2600

Temperature Grade

1430°C (2600°F)

Chemistry

Alumina, Silica, Zirconia

With the addition of 15-17% zirconia in its raw materials, CCEWOOL® Ceramic Fiber Blanket 2600 boasts exceptional chemical stability and strength, along with superior sound and thermal insulation properties. Reach Registration Certificate will be provided as requested for each shipment.

Get a Quote

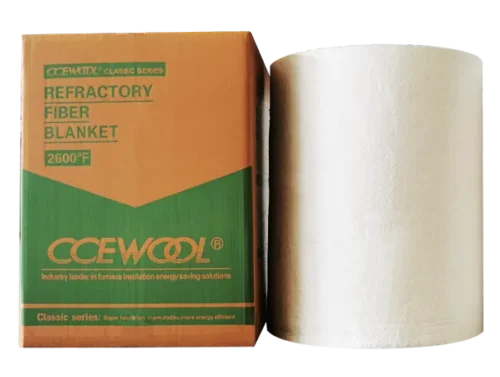

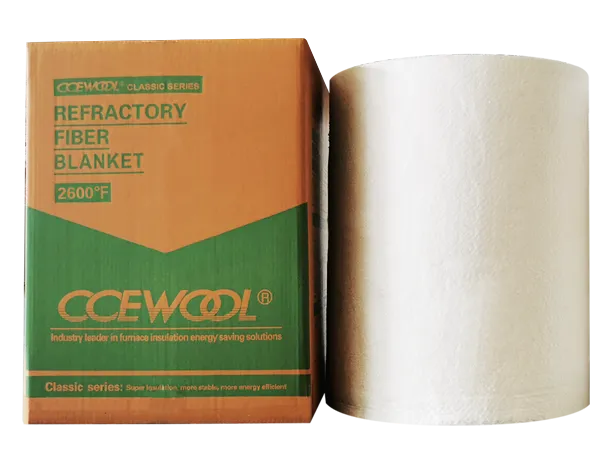

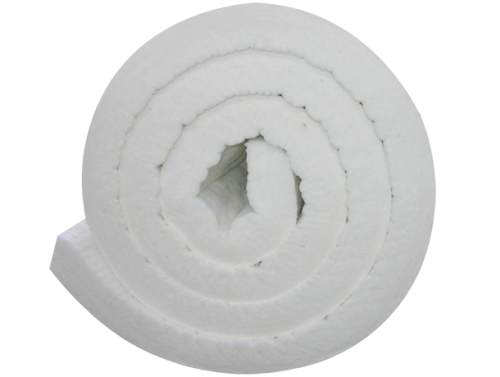

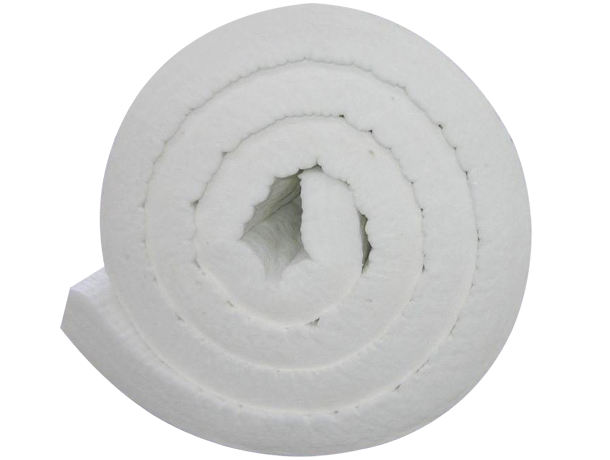

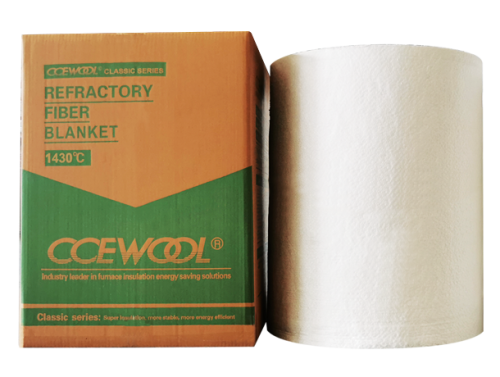

CCEWOOL® RCF Blanket 2600

CCEWOOL® Ceramic Fiber Blanket 2600 is made from high-purity alumina, zirconia, and silica as raw materials through a unique fiber manufacturing process. It possesses excellent insulation properties and exhibits extremely low shrinkage characteristics at high temperatures. Its long-term operating temperature reaches around 1350°C (2462°F).

CCEWOOL® Ceramic Fiber Blanket 2600 is white in color, flexible in texture, has good flatness, and is highly temperature-resistant, delivering excellent fire resistance and insulation. It is an ideal material for refractory, insulation, and thermal insulation applications in high-temperature environments.

Benefits

  • Enhanced High-Temperature Resistance with Added Zirconia

    Shot content is a crucial factor in determining the thermal conductivity of fibers. Using imported high-speed centrifuges, our fibers achieve ultra-low shot content, demonstrating excellent thermal performance with low thermal conductivity and superior insulation properties in continuous high-temperature environments.

  • Minimal Shrinkage Rate

    Strict control of harmful impurities is essential for reducing thermal shrinkage and enhancing heat resistance. Through rigorous raw material management, we reduce impurity content to below 1%, ensuring low thermal shrinkage and high heat resistance in our fiber blankets.

  • Maximum Tensile Strength

    Tensile strength refers to the fiber blanket's ability to resist breaking under tension. Utilizing our innovative double-sided needling technique, our fiber blankets exceed 85 Kpa in tensile strength, effectively withstanding impacts in harsh environments and significantly extending their service life.

  • Lowest Thermal Conductivity

    Through strict quality control and high-standard production processes, CCEWOOL® minimizes shot content and meticulously controls bulk density, achieving the lowest thermal conductivity. This provides customers with exceptional insulation performance and more efficient energy-saving solutions.

Features of Ceramic Fiber Blanket 2600

  • Excellent Handling Strength

    CCEWOOL® Ceramic Fiber Blanket 2600 is durable and easy to handle, making installation and maintenance straightforward and efficient.

  • Excellent Hot Strength

    The blanket maintains its structural integrity even at high temperatures, ensuring reliable performance in demanding environments.

  • Low Thermal Conductivity

    With low thermal conductivity, this blanket provides effective insulation, reducing heat loss and improving energy efficiency.

  • Low Heat Storage

    The blanket's low heat storage capability allows it to reach operating temperatures quickly, enhancing thermal efficiency.

  • Light Weight

    CCEWOOL® Ceramic Fiber Blanket 2600 is lightweight, which makes it easy to install and reduces the load on structures.

  • Resiliency

    The blanket is resilient, capable of returning to its original shape after compression, ensuring consistent insulation performance.

  • Thermal Shock Resistance

    It can withstand rapid temperature changes without cracking or losing its insulating properties, making it ideal for high-temperature applications.

  • High Heat Reflectance

    The blanket reflects heat effectively, further improving its insulating capabilities and protecting underlying materials.

  • Excellent Corrosion Resistance

    CCEWOOL® Ceramic Fiber Blanket 2600 resists corrosion, ensuring long-term durability and performance in various environments.

  • Excellent Thermal Stability

    The blanket maintains its insulating properties and structural integrity even under extreme thermal conditions, providing reliable and consistent performance.

Application of Ceramic Fiber Blanket 2600

Advanced High-Temperature Insulation and Fire Protection Solutions for Industrial Applications

Furnace linings; Boiler insulation; Temperature control in heat treatment processes; Insulation for the roofs of glass furnaces; Furnace door seals; Lining for flue ducts; Insulation for pipelines; Insulation components in transportation equipment; Fire protection; Thermal sealing gaskets for household appliances; Thermal stress relief insulation at outdoor welding joints; High-temperature insulation; Fire-resistant insulation for fire shutter doors.

Specifications & Sizes

CCEWOOL® RCF Blanket 2600

Classification temperature 1430HZ (2600℉)
Operation Temp(℃)(℉) 1350℃ (2462℉)
Density (kg/m3)  96/ 128/ 160(6,8,10lb/ft3)
Shot Content(%) ≤12
Color White
Chemical Composition of refractory ceramic blanket  (%)
Al2O3 ≥35
SiO2 ≥49
ZrO2 ≥15
Permanent Change on Heating (%), EN1094-1
 After 24 hours
®950℃ (1742℉) -
®1000℃ (1832℉) -
®1100℃ (2012℉) -
®1200℃ (2192℉) 1
®1300℃ (2372℉) 2
®1400℃ (2552℉) 3
Tensile Strength(Kg/m3), EN1094-1 KPa
64kg/m3(4lb/ft3) -
96kg/m3(6lb/ft3) 65
128kg/m3(8lb/ft3) 85
160kg/m3(10lb/ft3) 125
Heat Conductive Co-efficient W/(m·k)(128kg/m3)
200℃ (392℉) 0.06
400℃ (752℉) 0.11
600℃ (1112 ℉) 0.16
800℃ (1472℉) 0.23
1000℃ (1832℉) 0.35
Thickness  Density (kg/m3) Length Width
mm 64 96 128 160 mm mm
6 - - 7200 610, 1220
13 - 14640
19 - 9760
25 7320
38 4880
50 - 3660
Thickness  Density (lb/ft3) Length Width
in 4# 6# 8# 10# in in
1/4” - - 300” 24”,48”
1/2” - 600”
3/4” - 400”
1” 300”
3/2” 200”
2” - 150”

Custom size are available.Contact Us
