M90 Microporous Insulation Board

Temperature Grade

900℃ (1652℉)

Chemistry

Alumina, Silica

CCEWOOL® M90 Microporous Insulation Board has a thermal conductivity even lower than that of still air, making it an ideal high-temperature insulation material. The board surface can be coated with aluminum foil or PE shrink film.

Get a Quote

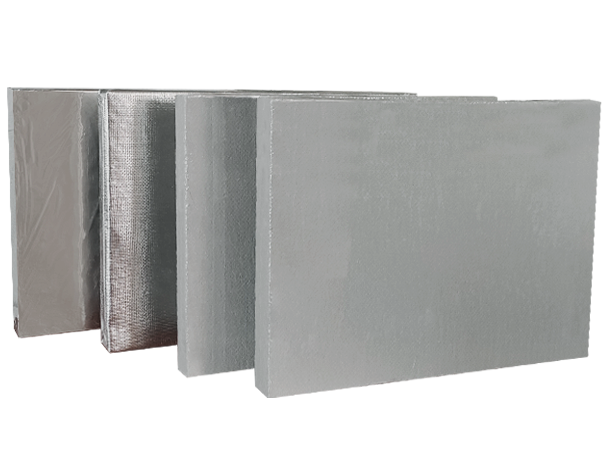

CCEWOOL® M90 Microporous Insulation Board

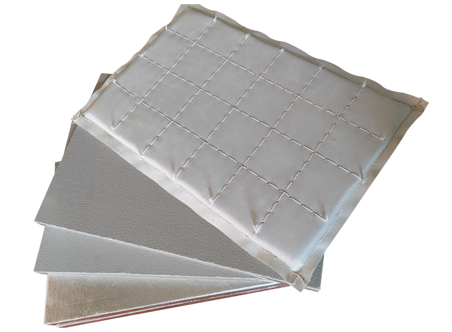

CCEWOOL® M90 Microporous Insulation Board is an efficient insulation product based on advanced microporous insulation technology. It has a lower thermal conductivity than stagnant air, making it an ideal high-temperature insulation material. The surface of the board can be coated with aluminum foil or PE shrink film. The nano board can also be coated with high-temperature glass fiber materials on the surface of nano-microporous insulation materials using a special process, giving it low thermal conductivity while maintaining moderate flexibility, allowing for multidimensional bending to meet the requirements of special space applications.

Benefits

  • Superior Thermal Conductivity at Low Temperatures

    With a thermal conductivity lower than that of static air, it effectively saves space, weight, and energy.

  • Outstanding Insulation Performance at High Temperatures

    Its thermal conductivity changes minimally with rising temperatures, offering 3-4 times better insulation than traditional materials in high-temperature environments.

  • Optional Surface Protection for Enhanced Durability

    Available with protective layers such as aluminum foil or fiberglass cloth to reduce dust, enhance strength, and protect against moisture damage.

  • The Ideal Choice for High-Temperature Insulation

    As the most efficient high-temperature solid insulation material, it is perfect for lightweight and energy-saving applications in furnaces.

Features of Microporous Insulation Board

  • Good Fit to Curved Surfaces

    Easily conforms to curved or irregular surfaces, ensuring a seamless and effective installation.

  • Excellent Thermal Shock Resistance

    Withstands rapid temperature changes without cracking or losing performance.

  • Excellent Thermal Stability

    Remains stable and reliable under prolonged high-temperature exposure.

  • Low Thermal Conductivity

    Minimizes heat transfer, providing superior insulation and energy savings.

  • Low Heat Storage

    Stores minimal heat, enabling faster heating and cooling cycles for improved efficiency.

  • Non-Combustibility

    Fire-resistant, ensuring safety and reliability in high-temperature environments.

Application of Microporous Insulation Board

Highly efficient energy-saving solutions

Typical Applications;
Back-up insulation in high-temperature furnaces;
Appliances insulation;
Fire protection equipment;
Electronic devices;
Nonferrous Metal Furnace;
Rotary & Shaft Kiln;
Various Incinerator;
Reheating Furnace;
Permanent Lining For EAF Ladle;
General Industrial Furnace etc.

Specifications & Sizes

CCEWOOL® M90 Microporous Insulation Board
Description M90 Board
Recommended Temperature of Use (℃ ) 900(1652℉)
Density (kg/m³) 280/300
Modules of Rupture (MPa) ≥0.15
Compressive Strength (MPa, 10% relative deformation) ≥0.3
Permanent Linear Shrinkage (%) 900℃ x 24h ≤2.0
Thermal Conductivity (W/m·K)
100℃ 0.02
200℃ 0.023
300℃ 0.026
400℃ 0.027
500℃ 0.033
600℃ -
Covering Material Aluminum Foil / PE Foil / Glass Fiber Cloth
Standard Size (mm) 600 x 400 x (10-50)
1000 x 500 x (10-50)

Custom size are available.Contact Us
