M60 Microporous Insulation Board

Temperature Grade

600℃ (1112℉)

Chemistry

Alumina, Silica

CCEWOOL® M60 Microporous Insulation Board has a thermal conductivity lower than that of still air at low temperatures. At high temperatures, its insulation effect is 3-4 times better than that of traditional insulation materials.

Get a Quote

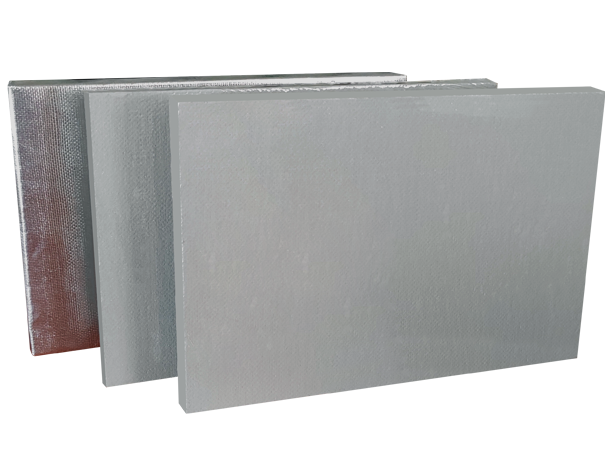

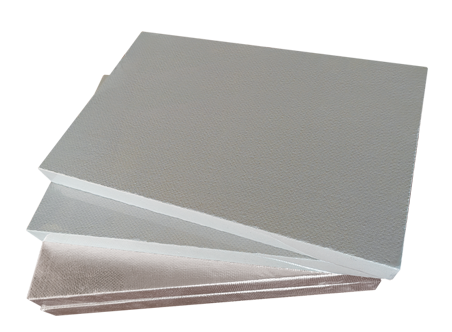

CCEWOOL® M60 Microporous Insulation Board

CCEWOOL® M60 Microporous Insulation Board is an efficient insulation product based on advanced microporous insulation technology. At low temperature, it has a lower thermal conductivity than still air. The thermal conductivity increases very little with the increase of temperature. At high temperature, its insulation effect is 3-4 times higher than traditional insulation materials.

CCEWOOL® M60 Microporous Insulation Board has high compressive strength, covered with aluminum foil or glass fiber cloth. It is an excellent choice for the lightweight and energy-saving application of kiln.

Benefits

  • Superior Thermal Conductivity at Low Temperatures

    With a thermal conductivity lower than still air, it effectively saves space, reduces weight, and conserves energy.

  • Consistent Insulation Performance at High Temperatures

    Its thermal conductivity remains stable even as temperatures rise, providing insulation 3-4 times more effective than traditional materials in high-temperature environments.

  • Optional Surface Protection for Enhanced Durability

    Available with protective layers like aluminum foil or fiberglass cloth, it reduces dust, enhances strength, and prevents moisture penetration.

  • Top Choice for High-Temperature Insulation

    As the most effective high-temperature solid insulation material, it is ideal for lightweight and energy-efficient kiln applications.

Features of M60 Microporous Insulation Board

  • Good fit to curved surfaces

    The CCEWOOL® M60 Microporous Insulation Board is highly flexible, allowing it to conform to various curved surfaces. This ensures effective insulation performance even in complex installation environments.

  • Low thermal conductivity

    This insulation board has an extremely low thermal conductivity, effectively blocking heat transfer and providing excellent thermal insulation, making it suitable for applications requiring high-efficiency insulation.

  • Low heat storage

    The CCEWOOL® M60 Microporous Insulation Board has a low heat capacity, allowing it to quickly respond to temperature changes, reduce heat retention, and improve the thermal efficiency of the system.

  • Non-combustibility

    This insulation board is non-combustible, providing high levels of safety and fire resistance, making it ideal for use in environments where fire safety is a critical concern.

Application of M60 Microporous Insulation Board

Versatile Insulation Solutions for Industrial Applications

Back-up insulation in high-temperature furnaces;
Appliances insulation;
Fire protection equipment;
Electronic devices;
Nonferrous Metal Furnace;
Rotary & Shaft Kiln;
Various Incinerator;
Reheating Furnace;
Permanent Lining For EAF Ladle;
General Industrial Furnace etc.

Specifications & Sizes

CCEWOOL® M60 Microporous Insulation Board

Description M60 Board
Recommended Temperature of Use (℃ ) 600 (1112℉)
Density (kg/m³) 300/320
Modules of Rupture (MPa) ≥0.15
Compressive Strength (MPa, 10% relative deformation) ≥0.3
Permanent Linear Shrinkage (%) 600℃ x 24h ≤2.0
Thermal Conductivity (W/m·K)
100℃ 0.022
200℃ 0.024
300℃ 0.028
400℃ 0.029
500℃ -
600℃ -
Covering Material Aluminum Foil / PE Foil / Glass Fiber Cloth
Standard Size (mm) 600 x 400 x (10-50)
1000 x 500 x (10-50)

Custom size are available.Contact Us
