Applications

Refractory Mortar

Temperature Grade

1260℃ (2300℉)-1650℃ (3002℉)

Chemistry

Alumina, Silica

CCEFIRE® Refractory Mortar features excellent high-temperature performance, adhesion, and corrosion resistance, making it an indispensable material in high-temperature industrial applications.

Get a Quote

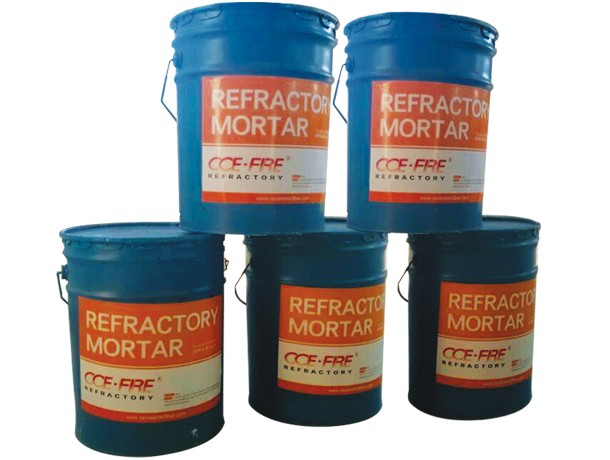

CCEFIRE® Refractory Mortar

CCEFIRE® refractory mortar is made from the same material powders of CCEFIRE® DJM Insulating Fire brick in the same temperature grade, adding binders, moisturizers, additives and composite admixtures to formulate a new kind of masonry material. CCEFIRE® refractory mortar has two types, dry mortar and wet mortar.

Benefits

  • Enhancing the integrity of refractory structures

    By using refractory mortar, the bonding between refractory components can be strengthened, thereby improving the overall stability and refractory performance of the structure.

  • Extended equipment lifespan

    Due to its excellent thermal shock and corrosion resistance, refractory mortar can extend the lifespan of high-temperature equipment and structures.

  • Strong adaptability

    It can meet the needs of various industrial environments and is suitable for various refractory materials and structures.

  • Low maintenance costs

    Due to its stability and durability, it reduces the frequency of maintenance and replacement, thus lowering long-term operational costs.

Features of Refractory Mortar

  • High Bonding Strength

    CCEFIRE® Refractory Mortar offers excellent bonding strength, ensuring that bricks and other refractory materials adhere firmly together, enhancing the overall stability and durability of the structure.

  • High Sealing Performance

    The mortar provides superior sealing performance, effectively preventing the ingress of gases and fluids, which helps maintain the efficiency and safety of high-temperature systems.

  • High Corrosion Resistance

    CCEFIRE® Refractory Mortar exhibits high resistance to corrosion, protecting the integrity of the structure from chemical attacks and prolonging its operational life.

  • Low Shrinkage at High Temperature

    This mortar demonstrates minimal shrinkage even at high temperatures, ensuring that the structure remains intact and stable, reducing the risk of cracks and gaps.

  • Long Service Life

    With its robust properties, CCEFIRE® Refractory Mortar offers a long service life, providing reliable and enduring performance in high-temperature environments.

Application of Refractory Mortar

High-Performance Refractory Mortar for Industrial Furnace Insulation and Protection

Construction of the insulating firebrick of the industrial furnace;
Prevent the incursion of air and heat into the masonry;
Prevent the erosion of slag and molten metal to the cracks of bricks.

Specifications & Sizes

CCEFIRE® Refractory Mortar
Description DJM 23 MORTAR DJM 26 MORTAR DJM 28 MORTAR DJM 30 MORTAR
Classification Temperature (℃ ) 1260 1430 1540 1650
Chemical Composition (%)
Al2O3 38 50 60 65
Fe2O3 ≤1.0 ≤0.9 ≤0.8 ≤0.7
Application DJM 23 BRICK DJM 26 BRICK DJM 28 BRICK DJM 30 BRICK
Packing Dry Mortar 50kg / Plastic Bag
Wet Mortar 25kg / Plastic Bucket

Custom size are available.Contact Us
