RCF Yarn 2300

Temperature Grade

1260°C (2300°F)

Chemistry

Alumina, Silica

CCEWOOL® Ceramic Fiber Yarn is used for the installation of insulation materials and heat conduction systems and is also widely used in the production of other refractory ceramic fiber textiles. Reach Registration Certificate will be provided as requested for each shipment.

Get a Quote

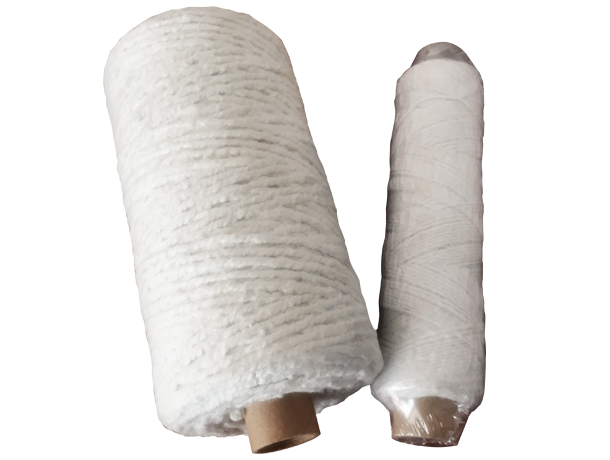

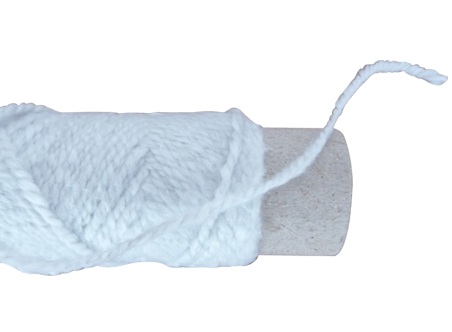

CCEWOOL® RCF Yarn 2300

CCEWOOL® Ceramic Fiber Yarn is made through a special process using refractory ceramic fiber cotton, non-alkali glass filament, and high-temperature-resistant stainless steel alloy wire. It is used for the installation of insulation materials and heat conduction systems and is also widely used in the production of other refractory ceramic fiber textiles. Products made from CCEWOOL® Ceramic Fiber Yarn are sturdy, chemically stable, and have excellent insulation qualities.

Benefits

  • Ultra-Low Shot Content

    Shot content is a crucial factor in determining the thermal conductivity of fibers. Using imported high-speed centrifuges, our fibers achieve ultra-low shot content, demonstrating excellent thermal performance with low thermal conductivity and superior insulation properties in continuous high-temperature environments.

  • Minimal Shrinkage Rate

    Strict control of harmful impurities is key to reducing thermal shrinkage and enhancing heat resistance. Through rigorous raw material management, we reduce impurity content to below 1%, ensuring low thermal shrinkage and high heat resistance in our fiber textiles.

  • Maximum Tensile Strength

    Tensile strength refers to the fiber textile's ability to resist breaking under tension. Utilizing unique production techniques, our fiber textiles possess superior tensile strength, effectively withstanding impacts in harsh environments and significantly extending their service life.

  • Lowest Thermal Conductivity

    Through strict quality control and high-standard production processes, CCEWOOL® minimizes shot content and meticulously controls bulk density, achieving the lowest thermal conductivity. This provides customers with exceptional insulation performance and more efficient energy-saving solutions.

Features of Ceramic Fiber Yarn

  • Excellent High-Temperature Strength

    CCEWOOL® RCF Yarn 2300 exhibits outstanding strength at high temperatures, maintaining its integrity and performance even under extreme heat conditions.

  • Superior Electrical Insulating Properties

    This yarn provides excellent electrical insulation, making it suitable for use in electrical applications where high-temperature resistance and electrical insulation are critical.

  • Exceptional Resistance to Acid, Oil, and Water Vapor Corrosion

    CCEWOOL® RCF Yarn 2300 is highly resistant to corrosion caused by acids, oils, and water vapor. This ensures longevity and durability in chemically harsh environments, protecting equipment and maintaining performance.

  • Low Thermal Conductivity

    The yarn has low thermal conductivity, providing effective thermal insulation. This property minimizes heat transfer and enhances energy efficiency in various applications.

  • Excellent Thermal Insulation

    With its superior thermal insulation properties, CCEWOOL® RCF Yarn 2300 effectively retains heat and prevents heat loss, making it an ideal choice for thermal management in high-temperature settings.

Application of Ceramic Fiber Yarn

Solution for Fireproof Cloth, Tape, and Rope Stitching

Stitching fireproof cloth/tape/rope

Specifications & Sizes

CCEWOOL® RCF Yarn 2300

Classification Temperature (℃) 1260(2300℉)
Name Glass Filament Reinforced Yarn Inconel Wire Reinforced Yarn
Density(kg/m3) 550
Long-term Operation Temp (℃) 550 1050
Water Content(%) ≤2
Organic Content(%) ≤15
Shrinkage at 982℃ (%) -1%
Packing of ceramic fiber yarn Braided Bag/ Carton

Custom size are available.Contact Us

Resources Downloads

Adhere to Strict Quality Control System

CCEWOOL® products have won a number of authoritative certifications, including rach certification, Fraunhofer laboratory certification and CE certification, which fully prove the excellent quality of our products. These certificates are not only a strong guarantee of the quality of our products, but also ensure a worry-free process for your order. If you need to know more certification details or request relevant certificates, please feel free to contact us!
