LBP Paper 2192

Temperature Grade

1200℃ (2192℉)

Chemistry

Silicon, calcium, magnesium (AES)

CCEWOOL® Low Biopersistent Fiber Paper 2192 is primarily composed of alkaline earth silicate (AES) fibers. It is biodegradable and suitable for scenarios requiring environmentally friendly characteristics.

Get a Quote

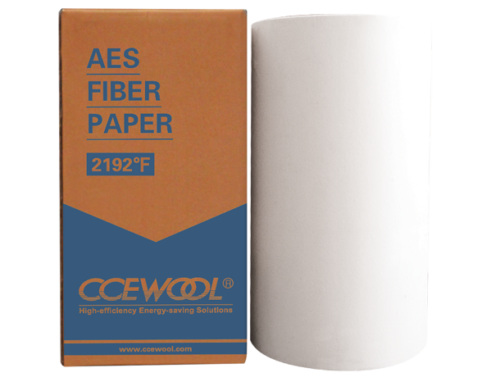

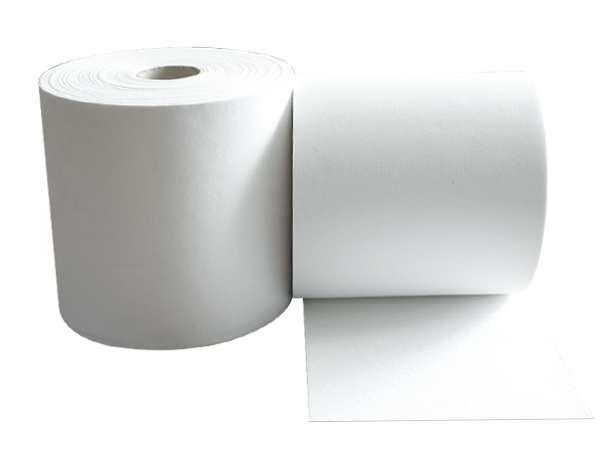

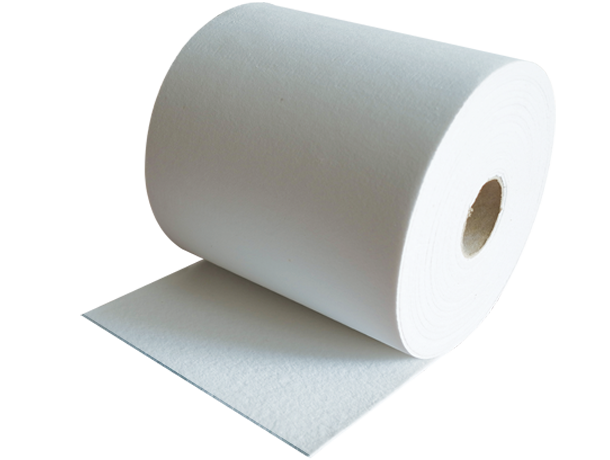

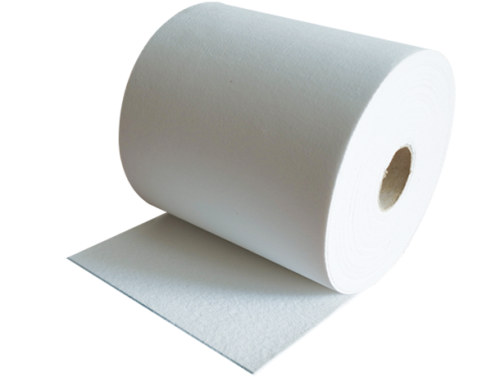

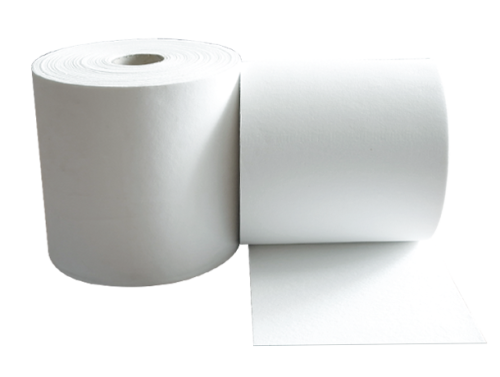

CCEWOOL® LBP Paper 2192

CCEWOOL® Low Biopersistent Fiber Paper 2192 is made from alkaline-earth silicate fibers primarily composed of SiO2, MgO, and CaO, blended with specific organic binders. This soluble fiber product is an innovative solution for high-temperature applications. With its unique calcium-magnesium chemical composition, it meets the requirements of applications up to 1200℃ (2192℉) while also demonstrating significant solubility and environmental-friendly characteristics. We offer soluble fiber paper in thicknesses ranging from 0.5 to 12mm. The product's safe operating temperature reaches up to 1200℃.

Benefits

  • Ultra-Low Shot Content

    Shot content is a crucial factor in determining the thermal conductivity of fibers. Using a nine-stage slag removal process, our fibers achieve ultra-low shot content, demonstrating excellent thermal performance with low thermal conductivity and superior insulation properties in continuous high-temperature environments.

  • Minimal Shrinkage Rate

    Strict control of harmful impurities is essential for reducing thermal shrinkage and enhancing heat resistance. Through rigorous raw material management, we reduce impurity content to below 1%, ensuring low thermal shrinkage and high heat resistance in our fiber papers.

  • Strongest Tear Resistance

    Tear resistance refers to the tensile strength of fiber paper. Using a fully automatic drying system, the drying process is faster and more thorough, achieving deep drying in 2 hours with uniform results. This ensures the product has superior tear resistance.

  • Lowest Thermal Conductivity

    Through strict quality control and high-standard production processes, CCEWOOL® minimizes shot content and meticulously controls bulk density, achieving the lowest thermal conductivity. This provides customers with exceptional insulation performance and more efficient energy-saving solutions.

Features of Low Biopersistent Fiber Paper

  • Low bio-persistence fiber

    The CCEWOOL® LBP Paper 2192 is made from fibers with low bio-persistence, making it safer for handling and use.

  • Excellent thermal insulating performance

    This product provides outstanding thermal insulation, ensuring efficient heat retention and energy savings.

  • Thin, flexible high-temperature insulation

    The paper is both thin and flexible, ideal for high-temperature insulation applications where space is limited.

  • Immune to thermal shock

    The CCEWOOL® LBP Paper 2192 is highly resistant to thermal shock, maintaining its integrity even under sudden temperature changes.

  • Low heat storage

    With low heat storage properties, the paper allows for quick heat-up and cool-down cycles, improving operational efficiency.

  • Easily die-cut to form complex shapes for high-temperature gasketing

    The material can be easily die-cut into complex shapes, making it perfect for high-temperature gasketing applications.

  • Excellent tensile strength

    The product boasts excellent tensile strength, ensuring durability and long-lasting performance.

  • Low thermal conductivity

    With low thermal conductivity, the CCEWOOL® LBP Paper 2192 effectively minimizes heat loss.

  • Non-wetting to molten aluminum

    The paper is non-wetting to molten aluminum, making it suitable for use in aluminum processing applications.

Application of Low Biopersistent Fiber Paper

Versatile Solutions for High-Temperature Gaskets and Fireproof Sealing Applications

High temperature gasket and sealing in various application;
Fire proof;
Fireproof doors;
Expansion joints ;
Fireplace converter gasket;
Gasket between Aluminum and zinc washer
  - High temperature gaskets
  - Metal lining;
Melting and holding furnaces refractory backing.

Specifications & Sizes

CCEWOOL® LBP Paper 2192

Classification temperature 1200 ℃(2192℉)
Density, Kg/m3 190-210
Operation temperature 1000℃ (1832℉)
Melting point >1300℃ (2372℉)
Tensile strength(Kpa) >250
Loss on ignition (wt%) 9
Permanent Linear shrinkage, % ENV(1094-1)
After 24 hours                                                     ®1000℃ 1.5
Thermal  conductivity (%)
400℃ 0.1
600℃ 0.16
800℃ 0.22
Chemical composition (%)
SiO2 65-68
CaO+MgO 27-33
others <=3%
Specification (MM) 60000*610*1 (2362”*24”*0.04”)
30000*610*2 (1181”*24”*0.08”)
20000*610*3 (787”*24”*0.12”)
15000*610*4 (590”*24”*0.16”)
12000*610*5 (472”*24”*0.2”)
10000*610*6 (394”*24”*0.24”)
Min Width: 5cm (2”)
Package Inner Plastic Bag+Outer Carton

Custom size are available.Contact Us
