LBP Module

Temperature Grade

1200℃ (2192℉), 1300℃ (2372℉)

Chemistry

Silicon, calcium, magnesium (AES)

CCEWOOL® Low Biopersistent Fiber Module is primarily composed of alkaline earth silicate (AES) fibers. It is suitable for medium to high-temperature environments, offering good thermal insulation and excellent chemical stability.

Get a Quote

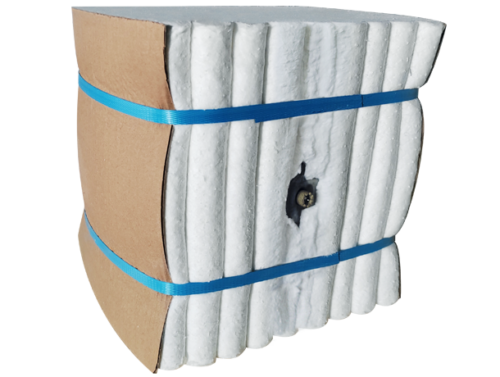

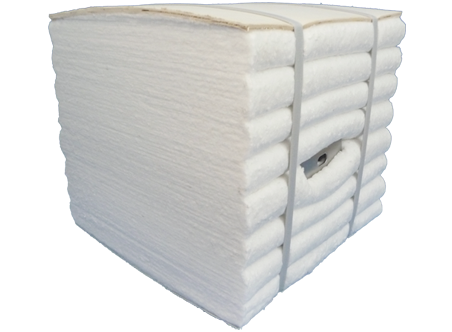

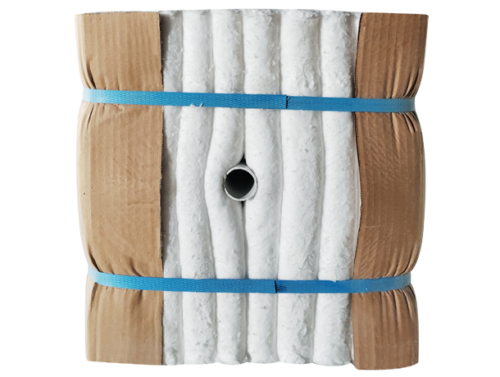

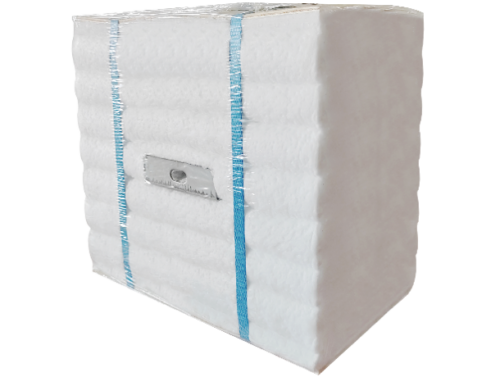

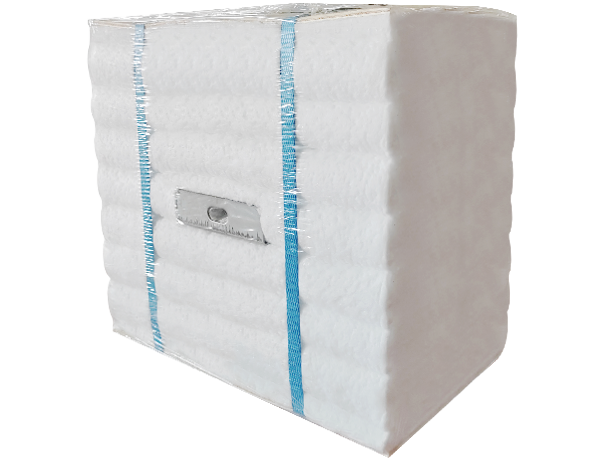

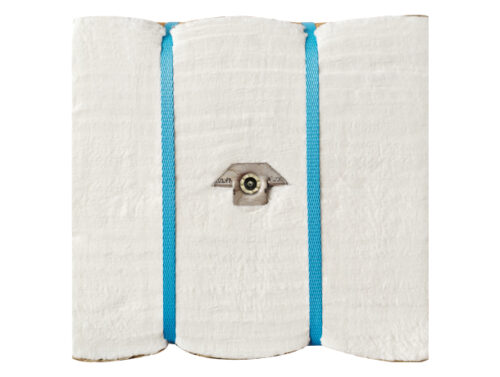

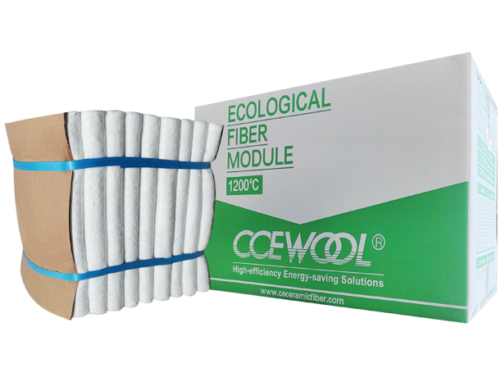

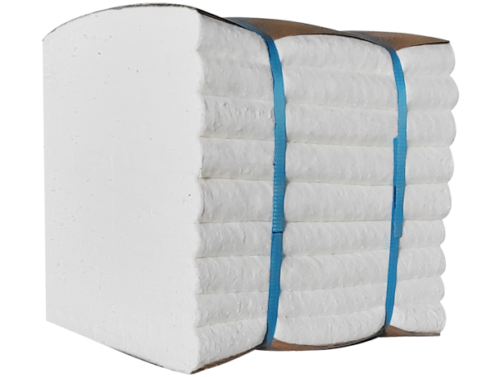

CCEWOOL® LBP Module

CCEWOOL® Low Biopersistent Fiber Module is compressed from soluble fiber blankets. Low Biopersistent Fiber products are innovative solutions for high-temperature applications. Based on the unique characteristics of its calcium-magnesium chemical composition, it can meet the requirements of use up to 1300°C (2372°F) while also exhibiting significant solubility and environmental properties. This module is designed to meet the insulation needs of industrial furnaces under specific thermal conditions.

CCEWOOL® Low Biopersistent Fiber Module are produced with various anchoring systems for quick, easy, and efficient installation in most furnace linings. Module linings can improve furnace productivity and reduce maintenance costs.

Benefits

  • Ultra-Low Shot Content

    Shot content is a crucial factor in determining the thermal conductivity of fibers. Using imported high-speed centrifuges, our fibers achieve ultra-low shot content, demonstrating excellent thermal performance with low thermal conductivity and superior insulation properties in continuous high-temperature environments.

  • Minimal Shrinkage Rate

    Strict control of harmful impurities is essential for reducing thermal shrinkage and enhancing heat resistance. Through rigorous raw material management, we reduce impurity content to below 1%, ensuring low thermal shrinkage and high heat resistance in our fiber modules.

  • Maximum Tensile Strength

    Tensile strength refers to the fiber module's ability to resist breaking under tension. The fiber blanket is folded according to specifications and compressed with a 5t press, then packaged under compression. It has excellent elasticity, effectively withstanding impacts in harsh environments and significantly extending its service life.

  • Lowest Thermal Conductivity

    Through strict quality control and high-standard production processes, CCEWOOL® minimizes shot content and meticulously controls bulk density, achieving the lowest thermal conductivity. This provides customers with exceptional insulation performance and more efficient energy-saving solutions.

Features of Low Biopersistent Fiber Module

  • High Temperature Stability (up to 1300°C)

    CCEWOOL® LBP Module maintains its structural integrity and performance even at temperatures up to 1300°C, ensuring reliable insulation in extreme heat conditions.

  • Low Thermal Conductivity

    This module has low thermal conductivity, which effectively minimizes heat transfer and enhances energy efficiency, making it an excellent choice for high-temperature insulation.

  • Thermal Shock Resistance

    The module can withstand rapid temperature changes without cracking or degrading, providing reliable performance in environments with fluctuating temperatures.

  • Low Heat Storage

    CCEWOOL® LBP Module has low heat storage capacity, allowing for quicker heating and cooling cycles, which improves overall energy efficiency and thermal management.

  • Lightweight

    The module is lightweight, making it easy to handle and install, reducing labor costs and simplifying the installation process.

  • Fast Installation & Selection of Attachment Systems

    The design of the module allows for fast installation and offers a variety of attachment systems, ensuring a secure fit and reducing installation time.

Application of Low Biopersistent Fiber Module

Optimal Insulation Solutions for High-Temperature Industrial Furnaces and Heaters

Heat treatment and forge furnaces;
Annealing furnaces;
Process heaters;
Ceramic tunnel kilns and Intermittent kilns;
Stress relieving furnaces;
Door and cover linings;
Carbottom heating furnaces;
Stack, flue and duct linings;
Incinerators and boilers;
Ladle preheat stands.

Specifications & Sizes

CCEWOOL® LBP Module

Classification Temperature (℃)(℉) 1200℃(2192℉) 1300℃(2372℉)
Chemical Composition (%)
SiO2 65-68 ≥70
CaO 27-33 -
MgO 2-7 -
CaO+MgO - ≥20
Color Light Bluish Light Bluish
Density (kg/m³)(lb/ft³) 160-220(10-13.75) 160-220(10-13.75)
Permanent Linear Shrinkage (%) 1200℃ x 24h ≤2.8 1300℃ x 24h ≤3.0
Thermal Conductivity (W/m·K)
400℃ 0.07 0.07
600℃ 0.12 0.13
800℃ 0.19 0.2
1000℃ 0.26 0.3
1200℃ 0.38 0.41

Custom size are available.Contact Us
