Calcium Silicate Board Custom Shapes

Temperature Grade

1050℃ (1922℉)

Chemistry

Silica, Calcium, Fiber

CCEWOOL® Calcium Silicate Board Custom Shapes are a premium insulation material that offers low thermal conductivity, lightweight design, and safe, asbestos-free performance.

Get a Quote

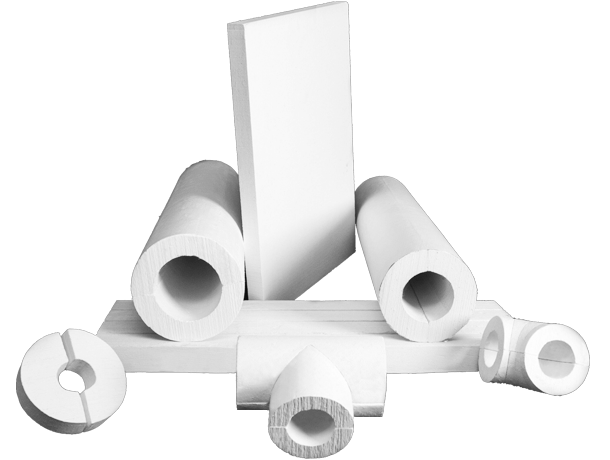

CCEWOOL® Calcium Silicate Board Custom Shapes

CCEWOOL® Calcium Silicate Board custom shapes are made from hardened calcium silicate hydrate and high-strength reinforcing fibers, are asbestos-free, and eco-friendly. They exhibit excellent heat resistance, withstanding temperatures up to 1050℃ (1922℉), making them an energy-efficient insulation solution.

Thanks to their outstanding thermal insulation performance and stability, these components are widely used in industries such as petroleum, chemical, building materials, light industry, machinery, metallurgy, power, and aluminum production. They provide reliable thermal insulation protection for various high-temperature equipment, effectively enhancing energy efficiency and helping enterprises save energy and boost productivity.

Benefits

  • Customizable

    CCEWOOL® Calcium Silicate Board Custom Shapes can be tailored to meet various complex shape and size requirements for different applications.

  • Excellent Corrosion Resistance

    They maintain stability even in harsh environments.

  • Superior Safety

    Made to strict environmental and health standards, they are free from asbestos, sulfur, chlorine, and other harmful substances.

  • Outstanding Thermal Insulation

    With extremely low thermal conductivity, they consistently deliver excellent insulation performance.

Features of Calcium Silicate Board Custom Shapes

  • Excellent Durability

    Withstands continuous thermal loads in high-temperature environments with strong stability.

  • Remarkable Insulation Performance

    Low thermal conductivity effectively reduces heat loss and improves energy efficiency.

  • Lightweight with High Specific Strength

    CCEWOOL® calcium silicate board components are lightweight and exhibit outstanding specific strength among rigid insulation products.

  • Outstanding Corrosion Resistance

    Maintains integrity without powdering over long-term use, significantly extending equipment lifespan.

  • Easy Operation

    High operational strength makes processing and installation simple.

  • Safe and Environmentally Friendly

    Free from asbestos, sulfur, chlorine, and other harmful substances, ensuring health and safety.

  • Excellent Water Resistance

    Remains stable even when exposed to moisture, and retains performance after drying.

Application of Calcium Silicate Board Custom Shapes

Highly efficient energy-saving solutions

Metallurgical Industry: Heating furnaces, homogenizing furnaces, annealing furnaces, high-temperature flues, and hot air ducts.
Petrochemical Industry: Heating furnaces, ethylene cracking furnaces, hydrogenation furnaces, and catalytic cracking furnaces.
Cement Industry: Rotary kilns, decomposition kilns, preheaters, air ducts, kiln hoods, and coolers.
Ceramic Industry: Tunnel kilns, including the car core and car board components of tunnel kilns.
Glass Industry: Furnace bottoms and walls of melting furnaces.
Electric Power Industry: Preheating furnace ducts.
Non-Ferrous Metals Industry: Electrolysis cells.

Specifications & Sizes

CCEWOOL® Calcium Silicate Board Custom Shapes
Classification Temperature 1050℃(1922℉)
Density (kg/m³) 220±10%
Compressive Strength (Mpa) ≥0.6
Flexural Strength (Mpa) ≥0.45
Thermal Conductivity (w/m.k)
100℃ ≤0.056
200℃ ≤0.067
Permanent Linear Shrinkage after 12hrs (%)
1000℃ ≤2

Custom size are available.Contact Us
